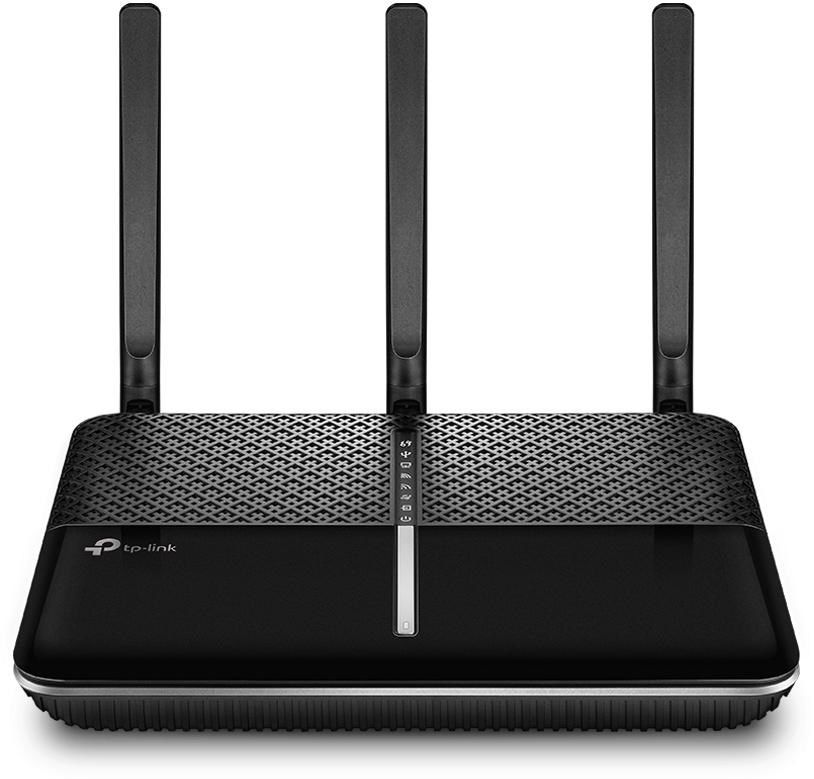

TP-Link AC2100 Wireless MU-MIMO VDSL /ADSL Modem Router

Features
Firmware upgradeable: Yes

Design
Product type: Tabletop router
On/off switch: Yes
Wall mountable: Yes
Product colour: Black
LED indicators: LAN, Power, Status, WLAN

Power
Output current: 1.5 A
Output voltage: 12 V
Power source type: DC

Security
Firewall: Yes
Guest access: Yes
Access Control List (ACL): Yes
Parental control: Yes
DMZ support: Yes
Network address translation (NAT): Yes
Security algorithms: 64-bit WEP, WPA2, WPA, WPA-PSK, 128-bit WEP, WPA2-PSK
Filtering: Yes

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C

Management features
WPS push button: Yes
MU-MIMO technology: Yes
Reset button: Yes
Web-based management: Yes

Weight & dimensions
Height: 36.8 mm
Depth: 164 mm
Width: 216 mm

Network
VPN tunnels quantity: 10
Static route: Yes
VPN Passthrough: Yes
Ethernet LAN interface type: Gigabit Ethernet
Dynamic DNS (DDNS): Yes
Ethernet LAN: Yes
Port triggering: Yes
Cabling technology: 10/100/1000Base-T(X)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
Port forwarding: Yes
USB sharing: Yes
Ethernet LAN data rates: 1000 Mbit/s, 10, 100
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

System requirements
Mac compatibility: Yes
Mac operating systems supported: MacOS
Windows operating systems supported: Windows XP, Windows 8.1, Windows Vista, Windows 7, Windows 98SE, Windows 2000, Windows 8, Windows 10
Linux operating systems supported: Yes

Packaging data
Package depth: 240 mm
Package height: 71 mm
Package width: 318 mm
Package weight: 1.17 kg

Packaging content
Quick installation guide: Yes
Cables included: Phone (RJ-11), LAN (RJ-45)
AC adapter included: Yes

Wireless LAN features
WLAN data transfer rate (max): 1733 Mbit/s
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (second band): 300 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band): 1733 Mbit/s
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Protocols
Universal Plug and Play (UPnP): Yes
Supported network protocols: IPv4, IPv6
DHCP server: Yes
DHCP client: Yes

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
RJ-11 ports quantity: 1
USB port: Yes
Memory card slot(s): No
Ethernet LAN (RJ-45) ports: 3
DC-in jack: Yes

Antenna
Antennas quantity: 4
Antenna design: Internal & external

WAN connection
Ethernet WAN: Yes
WAN connection type: RJ-45
DSL WAN: Yes
SIM card slot: No
3G/4G USB modem compatibility: Yes

DSL features
ADSL2+: Yes
VDSL2: Yes
VDSL: Yes
ADSL2: Yes
ADSL: Yes
