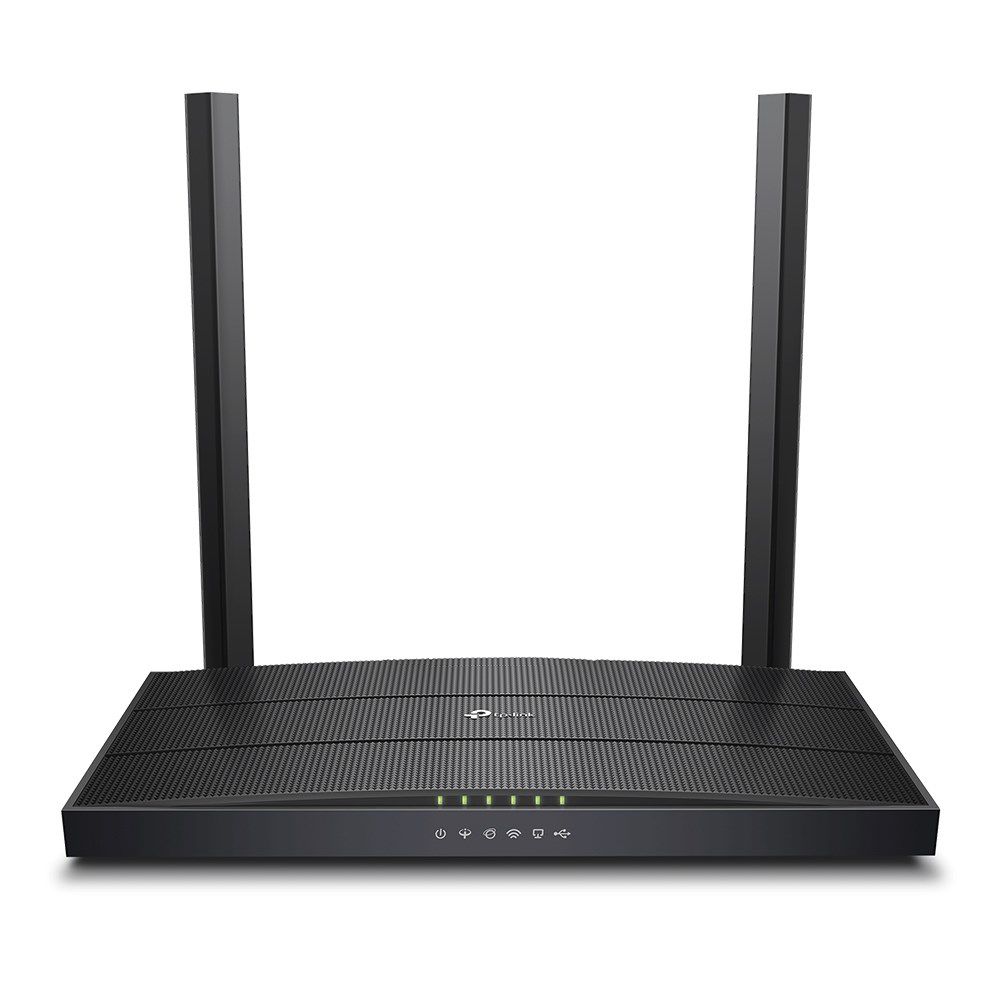

TP-Link Archer AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router

Design
Product type: Tabletop router
Product colour: Black

Power
Power source type: DC
Output voltage: 12 V
Output current: 1 A

Security
Network address translation (NAT): Yes
Security algorithms: WPA2-PSK, 128-bit WEP, 64-bit WEP, WPA2, WPA-PSK, WPA
Filtering: Yes
Parental control: Yes
Guest access: Yes
DMZ support: Yes
Firewall: Yes

Management features
Web-based management: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
WPS push button: Yes
MU-MIMO technology: Yes

Weight & dimensions
Width: 215.6 mm
Depth: 124.6 mm
Height: 31.6 mm

Network
Networking standards: IEEE 802.3, IEEE 802.11a, IEEE 802.3u, IEEE 802.11ac, IEEE 802.11b, IEEE 802.3ab, IEEE 802.11g, IEEE 802.11n
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN interface type: Gigabit Ethernet
Port forwarding: Yes
Dynamic DNS (DDNS): Yes
Port triggering: Yes
Number of guest networks (5 GHz): 1
Number of guest networks (2.4 GHz): 1

Packaging data
Package weight: 850 g
Package width: 350 mm
Package depth: 240 mm
Package height: 82 mm

Packaging content
AC adapter included: Yes
Quick installation guide: Yes
Cables included: LAN (RJ-45)

Wireless LAN features
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (second band): 300 Mbit/s
WLAN data transfer rate (first band): 867 Mbit/s

Protocols
DHCP client: Yes
DHCP server: Yes
Universal Plug and Play (UPnP): Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
USB port: Yes
USB 2.0 ports quantity: 1
RJ-11 ports quantity: 1

Antenna
Antennas quantity: 2
Antenna design: External

WAN connection
Ethernet WAN: Yes
WAN connection type: RJ-45
SIM card slot: No
DSL WAN: Yes
3G/4G USB modem compatibility: No

Logistics data
Harmonized System (HS) code: 85176990

DSL features
ADSL2+: Yes
ADSL2: Yes
ADSL: Yes
VDSL2: Yes
