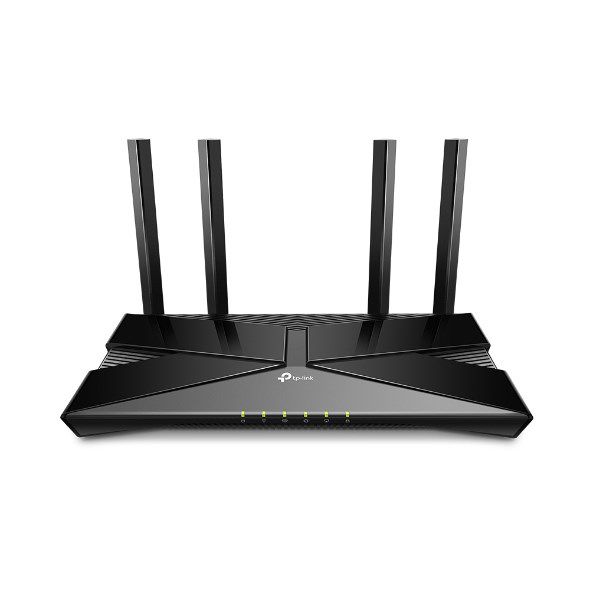

TP-Link Archer AX1800 Dual-Band Wi-Fi 6 Router

Certification: FCC, CE, RoHS

Features
Built-in processor: Yes
Processor cores: 2
Processor frequency: 1500 MHz

Design
Product type: Tabletop router
Product colour: Black

Power
Output current: 1 A
Output voltage: 12 V
Power source type: DC
NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ

Security
IP address filtering: Yes
System event log: Yes
Access Control List (ACL): Yes
Security algorithms: 128-bit WEP, WMM, WPA2-PSK, 64-bit WEP, WPA2, WPA-PSK, WPA
Network address translation (NAT): Yes
Guest access: Yes
DMZ support: Yes
URL filtering: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Bandwidth control: Yes
Reset button: Yes
Web-based management: Yes
WPS push button: Yes
Web-based setup wizard: Yes

Weight & dimensions
Height: 41.6 mm
Width: 260.2 mm
Depth: 135 mm

Network
Flow control support: Yes
Full duplex: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ax
Ethernet LAN data rates: 100, 10, 1000 Mbit/s
Dynamic DNS (DDNS): Yes
Static route: Yes
Port forwarding: Yes

System requirements
Windows operating systems supported: Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows Vista x64, Windows XP Professional x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 8, Windows 10 Education x64, Windows XP Home x64, Windows 7 Ultimate x64, Windows Vista, Windows 7 x64, Windows 7 Professional x64, Windows XP Professional, Windows XP, Windows 7 Home Basic, Windows 7 Ultimate, Windows 2000, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 98SE, Windows XP Home, Windows 10 Home, Windows 7 Starter x64, Windows 10 Pro x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 2000 Professional, Windows 7 Professional, Windows 7, Windows Vista Business, Windows 8.1, Windows Vista Ultimate, Windows Vista Enterprise, Windows 8.1 Enterprise, Windows 10, Windows Vista Ultimate x64, Windows Vista Home Premium x64, Windows 8 x64, Windows Vista Business x64, Windows 10 Education, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Enterprise x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Home Basic, Windows 8 Pro x64, Windows 8.1 Pro
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Packaging data
Package height: 395 mm
Package depth: 350 mm
Package width: 500 mm
Package weight: 730 g

Packaging content
Quick installation guide: Yes
Cables included: LAN (RJ-45)
Warranty card: Yes
AC adapter included: Yes

Wireless LAN features
Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 1800 Mbit/s
WLAN data transfer rate (second band): 1201 Mbit/s
WLAN data transfer rate (first band): 574 Mbit/s

Protocols
Universal Plug and Play (UPnP): Yes
DHCP server: Yes
DHCP client: Yes

Ports & interfaces
USB port: No
Ethernet LAN (RJ-45) ports: 4
DC-in jack: Yes

Antenna
Antenna design: External
Antenna connector type: SMA

WAN connection
WAN connection type: RJ-45
SIM card slot: No
Ethernet WAN: Yes

Logistics data
Harmonized System (HS) code: 85176990

Mobile network
4G: Yes
