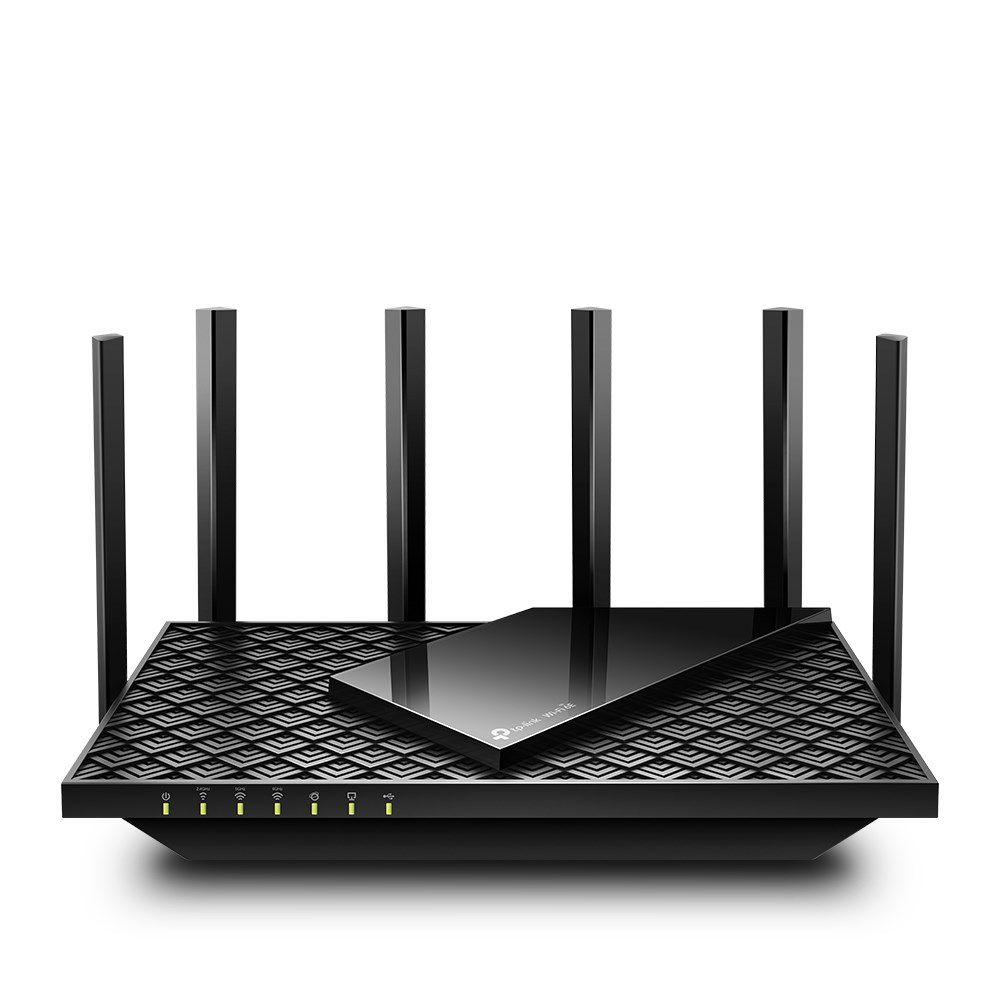

TP-Link Archer AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

Technical details
Compliance certificates: RoHS, Federal Communications Commission (FCC)

Features
Firmware upgradeable: Yes
Processor frequency: 1700 MHz
Processor cores: 4
Built-in processor: Yes

Design
Product colour: Black
LED indicators: Power, WAN, WLAN
On/off switch: Yes
Product type: Tabletop router
Wall mountable: Yes

Power
Power source type: DC
Output current: 2.5 A
Output voltage: 12 V

Security
Guest access: Yes
URL filtering: Yes
DoS attack prevention: Yes
Firewall: Yes
DMZ support: Yes
Access Control List (ACL): Yes
MAC address filtering: Yes
Network address translation (NAT): Yes
Security algorithms: WPA2, WPA, WPA-Enterprise, WPA3
IP address filtering: Yes
Firewall security: SPI Firewall
DDoS protection: Yes

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C

Management features
WPS push button: Yes
Wake-on-LAN ready: Yes
Web-based management: Yes
Reset button: Yes
Quality of Service (QoS) support: Yes
Wireless statistics: Yes

Weight & dimensions
Width: 272.5 mm
Height: 49.2 mm
Depth: 147.2 mm
VPN support: OpenVPN Server PPTP VPN Server L2TP VPN Server

Network
VPN Passthrough: Yes
Port forwarding: Yes
Port triggering: Yes
Dynamic DNS (DDNS): Yes
Static route: No
Built-in FTP server: Yes
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 2500 Mbit/s
Ethernet LAN: Yes
Media server: Yes
Number of guest networks (5 GHz): 1
VPN server: OpenVPN Server
Number of guest networks (2.4 GHz): 1
Support Samba (storage): Yes

Packaging data
Package height: 120 mm
Number of products included: 1 pc(s)
Package depth: 265 mm
Package width: 328 mm
Package weight: 1.53 kg

Packaging content
Quick installation guide: Yes
AC adapter included: Yes
Cables included: LAN (RJ-45)

Wireless LAN features
WLAN data transfer rate (second band): 2402 Mbit/s
WLAN data transfer rate (third band): 2402 Mbit/s
WLAN data transfer rate (first band): 574 Mbit/s
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11b
WLAN data transfer rate (max): 5400 Mbit/s
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Protocols
Universal Plug and Play (UPnP): Yes
DHCP client: Yes
Supported network protocols: IPv4, IPv6
DHCP server: Yes

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 5
USB port: Yes

Antenna
Detachable antenna(s): Yes
Transmit power: FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
Antennas quantity: 6
Antenna design: External

WAN connection
SIM card slot: No
WAN connection type: RJ-45
3G/4G USB modem compatibility: No
DSL WAN: No
Ethernet WAN: Yes

Logistics data
Harmonized System (HS) code: 85176990

Sustainability
Sustainability certificates: RoHS, Federal Communications Commission (FCC)
Sustainability compliance: Yes
