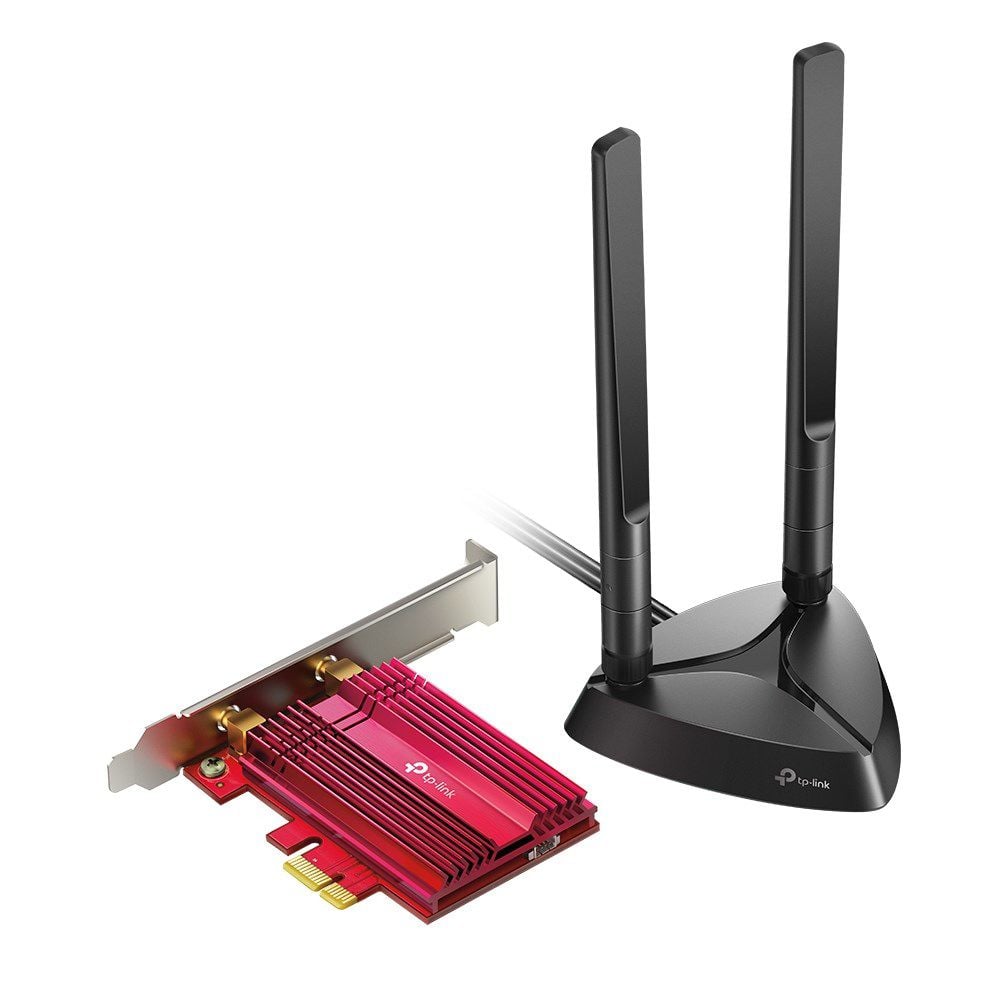

TP-Link Archer TX3000E Internal WLAN /Bluetooth 2402 Mbit /s

Technical details
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)
Receiver sensitivity: 5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm

Design
Product colour: Red, Black
Operating modes: Infrastructure mode
Antenna: Yes
Internal: Yes
Component for: PC
Chipset: Intel Wi-Fi 6
Transmitting power (FCC): 27 dBm
Transmitting power (CE): 23 dBm
Antenna design: External

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Width: 95.2 mm
Depth: 120.8 mm
Height: 21.5 mm

Network
Security algorithms: 64-bit WEP, WPA2, WPA-PSK, WPA3, WPA, 802.1x RADIUS, 128-bit WEP, WPA2-PSK
Modulation: OFDM, DQPSK, 256-QAM, 64-QAM, CCK, DBPSK, 16-QAM
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported: 54, 574, 2402 Mbit/s, 1733, 300
Frequency range: 2.4 - 5 GHz
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Bluetooth version: 5.0
Maximum data transfer rate: 2402 Mbit/s
Bluetooth: Yes
Wi-Fi: Yes

System requirements
Windows operating systems supported: Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Home x64, Windows 10 Education x64, Windows 10 Pro x64

Packaging data
Package depth: 215 mm
Package height: 47 mm
Package width: 270 mm
Package weight: 480 g

Packaging content
Mounting brackets included: Yes
Resource CD: Yes
Quick installation guide: Yes
Bluetooth header cable: Yes

Ports & interfaces
Host interface: PCI Express
Interface: WLAN / Bluetooth
Connectivity technology: Wireless

Logistics data
Harmonized System (HS) code: 85176990

Sustainability
Sustainability compliance: Yes
