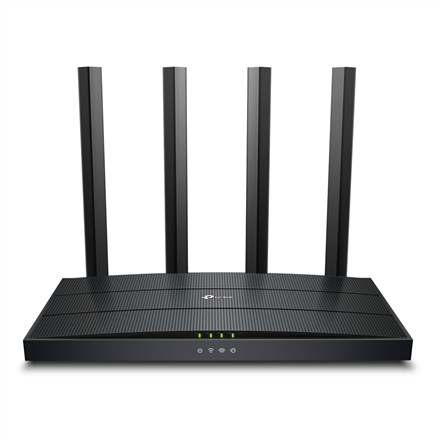

TP-LINK | AX1500 Wi-Fi 6 Router | Archer AX17 | 802.11ax | 10 /100 /1000 Mbit /s | Ethernet LAN (RJ-45) ports 3 | Mesh Support Yes | MU-MiMO Yes | No mobile broadband | Antenna type Fixed

Design
Product colour: Black
Product type: Tabletop router

Power
Power source type: DC
Output current: 1 A
Output voltage: 12 V

Security
Security algorithms: WPA2-PSK, WPA-PSK, WPA2-Enterprise, WPA3-Personal

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 60 °C

Management features
WPS push button: Yes
Reset button: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Height: 32 mm
Depth: 117 mm
Width: 215 mm
Receiver sensitivity: 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm 2.4 GHz: 11g 6Mbps: -96 54Mbps: -80 HT20-MCS0: -97 MCS7: -78 HT40-MCS0: -94 MCS7: -75

Network
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10, 100, 1000
Ethernet LAN: Yes

Packaging content
Cables included: LAN (RJ-45)
Quick installation guide: Yes
AC adapter included: Yes

Wireless LAN features
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 1501 Mbit/s
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (second band): 1201 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band): 300 Mbit/s

Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
USB port: No

Antenna
Antennas quantity: 4
Antenna design: External

WAN connection
Ethernet WAN: Yes
WAN connection type: RJ-45
SIM card slot: No
DSL WAN: No

Safety warning
Warnings: The product may emit radio waves that may interfere with other electronic devices., Do not open the appliance housing - risk of electric shock., Avoid contact with liquids as this may cause electric shock.
