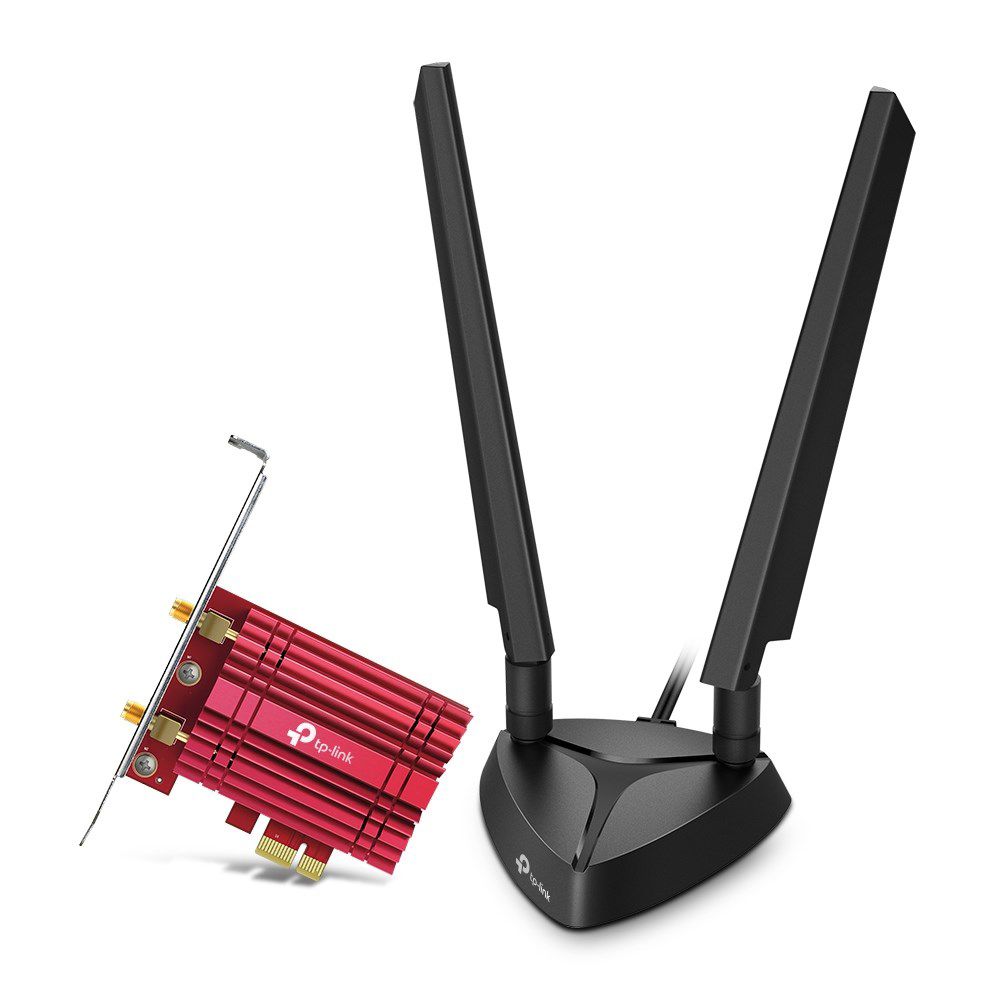

TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter

Technical details
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Design
Antenna: Yes
Operating modes: Infrastructure mode
Antenna design: External
Transmitting power (FCC): 5 GHz: 20dBm, 2.4 GHz: 20dBm, 6 GHz: 12dBm
Product colour: Black, Red
Internal: Yes
Component for: PC

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions
Depth: 120.8 mm
Height: 21.5 mm
Width: 95.2 mm

Network
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Bluetooth version: 5.2
WLAN data transfer rates supported: 2402 Mbit/s, 54, 11, 300 Mbit/s, 1732
Maximum data transfer rate: 5400 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11b
Security algorithms: WPA2, WEP, WPA2-PSK, WPA, WPA-PSK, WPA3
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
Wi-Fi: Yes

System requirements
Windows operating systems supported: Windows 10 Home x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Pro x64, Windows 11 x64, Windows 10 Education x64, Windows 11 Enterprise x64

Packaging data
Package weight: 480 g
Package depth: 216.5 mm
Package height: 48.5 mm
Package width: 271.5 mm

Packaging content
Mounting brackets included: Yes
Resource CD: Yes
Bluetooth header cable: Yes
Quick installation guide: Yes

Ports & interfaces
Host interface: PCI Express
Interface: WLAN / Bluetooth
Connectivity technology: Wireless

Logistics data
Harmonized System (HS) code: 85176990

Sustainability
Sustainability compliance: Yes
