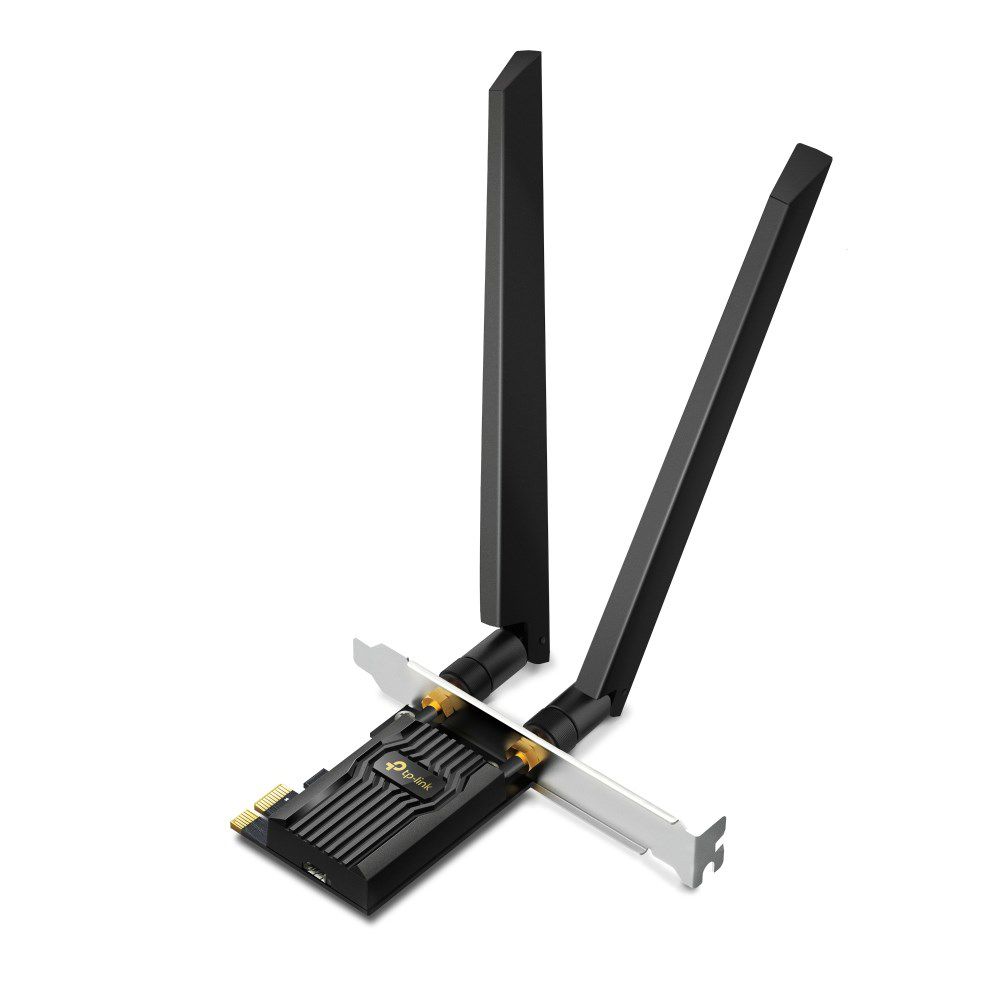

TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

Technical details
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Design
Antenna type: 2x2
Product colour: Black
Component for: PC
Antenna design: External
Internal: Yes
Antenna: Yes
Transmitting power (CE): 5 GHz: 15, 2.4 GHz: 16
Transmitting power (FCC): 5 GHz: 20, 2.4 GHz: 20, 6 GHz: 12
Operating modes: Infrastructure mode

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions
Height: 120 mm
Width: 78.5 mm
Depth: 21 mm

Network
WLAN data transfer rates supported: 54, 300 Mbit/s, 1732 Mbit/s, 2402 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11b
Security algorithms: WPA, WPA2, WPA2-PSK, WPA-PSK, WEP, WPA3
Bluetooth: Yes
Maximum data transfer rate: 2402 Mbit/s
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, 802.11g, 802.11b
Wi-Fi: Yes
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)

System requirements
Windows operating systems supported: Windows 10 Education x64, Windows 11 Enterprise x64, Windows 10 Home x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 11, Windows 11 x64

Packaging data
Package depth: 152.5 mm
Package weight: 240 g
Package height: 41.5 mm
Package width: 201.5 mm

Packaging content
Mounting brackets included: Yes
Quick installation guide: Yes
Resource CD: Yes
Bluetooth header cable: Yes

Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: WLAN / Bluetooth

Sustainability
Sustainability compliance: Yes
