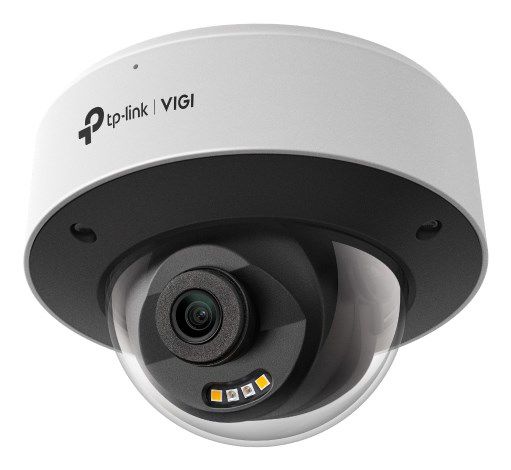

TP-Link InSight S245 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling

Design
IK code: IK10
International Protection (IP) code: IP67
Housing material: Metal
Protection features: Waterproof
Form factor: Dome
Product colour: White
Weatherproof: Yes
Mounting type: Ceiling

Power
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 12.52 W
DC output voltage: 12

Security
Alert notification type: Push notification
Mirror: Yes
Password protection: Yes
Digest authentication: Yes
Human and vehicle targets classification: Yes
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Scene change, Intrusion, Human detection, Moving object, Crossing line, Vehicle detection, Region entrance detection, Region exiting detection, Abnormal sound detection
Video motion detection: Yes
IP address filtering: Yes
Motion sensor: Yes
Detection distance: 80 m
HTTPS encryption: Yes
Built-in siren: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C

Management features
Reset button: Yes
Web-based management: Yes
Cloud-managed: Yes
Web browser: Yes

Weight & dimensions
Width: 122 mm
Weight: 620 g
Height: 89 mm
Depth: 122 mm

Network
Networking standards: IEEE 802.3af, IEEE 802.3at
Ethernet LAN: Yes
Bluetooth: No
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi: No
Live view: Yes

Performance
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Type: IP security camera
Infrared (IR) cut-off filter: Yes
Remote viewing: Yes
Dynamic range: 120 dB
Maximum operating distance: 80 m
Placement supported: Outdoor
Day/night mode: Yes

Packaging content
Manual: Yes
Number of cameras: 1

Audio
Audio system: 2-way
Audio input channels: 1.0 channels
Built-in microphone: Yes
Audio output channels: 1.0 channels
Sample rate: 8 kHz
Built-in speaker(s): Yes
Number of microphones: 1
Bit rate range: 0 - 64 Kbit/s
Audio formats supported: G.711 A-law

Storage
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1

Camera
Minimum illumination: 0 lx
Tilt angle range: 0 - 75°
Camera tilt control: Yes
Camera pan control: Yes
Lens viewing angle, diagonal: 105.4°
Camera shutter speed: 1/3 to 1/10000
Lens viewing angle, horizontal: 88°
Lens viewing angle, vertical: 46°

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Video
Supported graphics resolutions: 1280 x 720 (HD 720), 2048 x 1280, 2688 x 1520, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Bit rate: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Total megapixels: 4 MP
Digital Wide Dynamic Range (DWDR): Yes
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Maximum resolution: 2688 x 1520 pixels
Image quality adjustment: Brightness, Sharpness, Saturation, Contrast, Mirror
Video recording: Yes
Video compression formats: H.265+, H.265, H.264+, H.264
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Night vision
LED type: IR/White
Night vision: Yes

Lens system
Detect distance: 80 m
Fixed focal length: 4 mm
Recognize distance: 16 m
Maximum aperture number: 1.6
Identify distance: 8 m
Observe distance: 33 m
