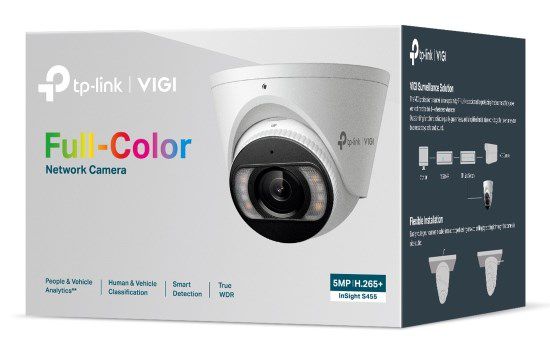

TP-Link INSIGHT S455 Turret IP security camera Outdoor 2880 x 1620 pixels Ceiling

Design
Housing material: Metal
Protection features: Waterproof
Form factor: Turret
International Protection (IP) code: IP67
Product colour: White
Mounting type: Ceiling
Weatherproof: Yes

Power
Power source type: DC, PoE
Power consumption (max): 11 W
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12

Security
Built-in siren: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Motion sensor: Yes
Video motion detection: Yes
Password protection: Yes
Alert notification type: Push notification
Mirror: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Management features
Reset button: Yes
Web-based management: Yes
Cloud-managed: Yes
Web browser: Yes

Weight & dimensions
Weight: 480 g
Width: 111 mm
Height: 83.7 mm
Length: 111 mm

Network
Networking standards: IEEE 802.3at, IEEE 802.3af
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi: No
Bluetooth: No
Live view: Yes

Performance
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Dynamic range: 120 dB
Remote viewing: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Maximum operating distance: 80 m
Connectivity technology: Wired

Packaging data
Package type: Box

Packaging content
Drilling template included: Yes
Mounting kit: Yes
Manual: Yes
Number of cameras: 1
Screws included: Yes

Audio
Audio output channels: 1.0 channels
Audio system: 2-way
Built-in microphone: Yes
Bit rate range: 0 - 64 Kbit/s
Audio formats supported: G.711 A-law
Audio input channels: 1.0 channels
Number of microphones: 1
Built-in speaker(s): Yes
Sample rate: 8 kHz

Storage
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, vertical: 46°
Lens viewing angle, diagonal: 105.4°
Lens viewing angle, horizontal: 88°
Camera shutter speed: 1/3 to 1/10000
Minimum illumination: 0 lx
Tilt angle range: 0 - 90°

Image sensor
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Video
Maximum resolution: 2880 x 1620 pixels
Supported graphics resolutions: 2688 x 1520, 1280 x 720 (HD 720), 2048 x 1280, 1920 x 1080 (HD 1080), 2304 x 1296, 2880 x 1620
Video compression formats: H.264+, H.265, H.265+, H.264
Bit rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Total megapixels: 5 MP
Digital Wide Dynamic Range (DWDR): Yes
Back Light Compensation (BLC): Yes
Image quality adjustment: Saturation, Contrast, Mirror, Sharpness, Brightness
Video recording: Yes

Night vision
LED type: IR/White
Night vision: Yes

Lens system
Fixed focal length: 4 mm
Detect distance: 80 m
Maximum aperture number: 1.6
Fixed focus: Yes
Recognize distance: 16 m
Observe distance: 33 m
Identify distance: 8 m
