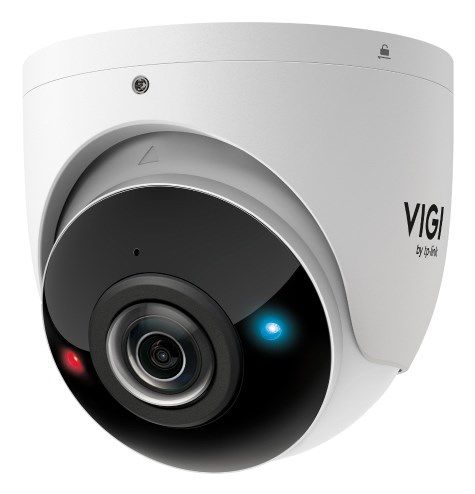

TP-Link InSight S485PI Turret IP security camera Outdoor 3840 x 2160 pixels Wall

Design
International Protection (IP) code: IP67
Form factor: Turret
Housing material: Metal
Protection features: Waterproof
Mounting type: Wall
Product colour: White
Weatherproof: Yes

Power
Power consumption (max): 18 W
Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 21 W
DC output voltage: 12

Security
Built-in siren: Yes
Digest authentication: Yes
Human and vehicle targets classification: Yes
Alert notification type: Push notification
Mirror: Yes
Video motion detection: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Motion sensor: Yes
Detection distance: 120 m
Password protection: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C

Management features
Cloud-managed: Yes
Reset button: Yes
Web-based management: Yes
Web browser: Yes

Weight & dimensions
Depth: 112.3 mm
Weight: 760 g
Height: 110.2 mm
Width: 112.3 mm

Network
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view: Yes
Ethernet LAN: Yes
Wi-Fi: No
SIM card slot: Yes
SIM card type: MicroSIM
Bluetooth: No
Networking standards: IEEE 802.3at

Performance
Type: IP security camera
Infrared (IR) cut-off filter: Yes
Remote viewing: Yes
Wide Dynamic Range (WDR): Yes
Dynamic range: 120 dB
Connectivity technology: Wired
Placement supported: Outdoor
Maximum operating distance: 44 m
Day/night mode: Yes

Packaging content
Drilling template included: Yes
Number of cameras: 1
Mounting kit: Yes
Screws included: Yes
Manual: Yes

Audio
Built-in microphone: Yes
Bit rate range: 0 - 64 Kbit/s
Audio formats supported: G.711 A-law
Audio input channels: 1.0 channels
Sample rate: 8 kHz
Audio output channels: 1.0 channels
Built-in speaker(s): Yes
Audio system: 2-way
Number of microphones: 1

Storage
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Camera
Lens viewing angle, vertical: 86°
Lens viewing angle, horizontal: 180°
Lens viewing angle, diagonal: 180°
Camera shutter speed: 1/3 to 1/10000
Minimum illumination: 0 lx
Tilt angle range: 0 - 90°

Image sensor
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS

Video
Total megapixels: 8 MP
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Supported graphics resolutions: 3840 x 2160, 2688 x 1520, 1920 x 1080 (HD 1080), 2304 x 1296, 2048 x 1280, 2560 x 1440, 1280 x 720 (HD 720), 2880 x 1620
Maximum resolution: 3840 x 2160 pixels
Bit rate: Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
Highlight Compensation (HLC): Yes
Video recording: Yes
Image quality adjustment: Saturation, Contrast, Mirror, Sharpness, Brightness
Back Light Compensation (BLC): Yes
Video compression formats: H.264+, H.264, H.265+, H.265

Night vision
LED type: IR/White
Night vision: Yes

Lens system
Fixed focus: Yes
Detect distance: 44 m
Maximum aperture number: 2
Recognize distance: 8.8 m
Identify distance: 4.4 m
Observe distance: 18.33 m
Fixed focal length: 1.65 mm

Panoramic camera
Sensor type (panoramic camera): CMOS
