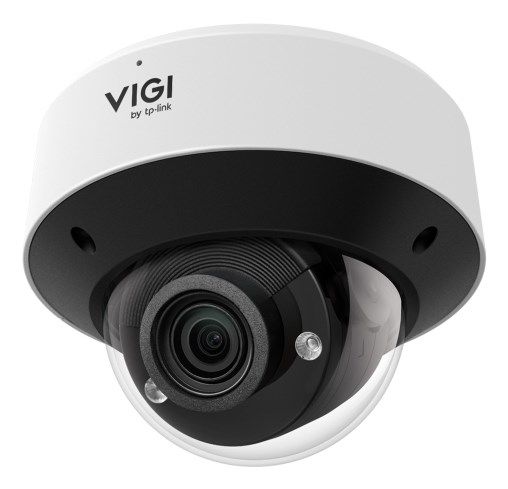

TP-LINK IP Camera InSight S245ZI

Design
Product colour: White
Form factor: Dome
Housing material: Metal
Mounting type: Ceiling
International Protection (IP) code: IP67
Weatherproof: Yes
IK code: IK10
Protection features: Waterproof

Power
Power source type: DC, PoE
Power consumption (max): 10.8 W
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12

Security
Motion sensor: Yes
Digest authentication: Yes
Intelligent Video Surveillance (IVS) system features: Crossing line, Vehicle detection, Region entrance detection, Line crossing detection, Region exiting detection, Intrusion, Scene change, Human detection, Moving object, Abnormal sound detection
Detection distance: 200 m
Video motion detection: Yes
Human and vehicle targets classification: Yes
Built-in siren: Yes
IP address filtering: Yes
Mirror: Yes
Alert notification type: Push notification
Password protection: Yes
HTTPS encryption: Yes

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95%

Management features
Web-based management: Yes
Reset button: Yes
Web browser: Yes
Cloud-managed: Yes

Weight & dimensions
Weight: 775 g
Height: 102.5 mm
Depth: 129.9 mm
Width: 129.9 mm

Network
Networking standards: IEEE 802.3at, IEEE 802.3af
Bluetooth: No
Wi-Fi: No
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view: Yes

Performance
Type: IP security camera
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Placement supported: Outdoor
Maximum operating distance: 200 m
Day/night mode: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Remote viewing: Yes

Packaging data
Package type: Box

Packaging content
Manual: Yes
Number of cameras: 1

Audio
Audio output channels: 1.0 channels
Audio system: 2-way
Built-in microphone: Yes
Audio input channels: 1.0 channels
Number of microphones: 1
Built-in speaker(s): Yes
Bit rate range: 0 - 64 Kbit/s
Audio formats supported: G.711 A-law
Sample rate: 8 kHz

Storage
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Camera
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 to 1/10000
Minimum illumination: 0 lx
Lens viewing angle, vertical: 16.8 - 53.8°
Lens viewing angle, horizontal: 29.6 - 102°
Lens viewing angle, diagonal: 34.1 - 122.8°
Camera pan control: Yes
Camera tilt control: Yes

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Video
Supported graphics resolutions: 2048 x 1280, 2688 x 1520, 2304 x 1296, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2560 x 1440
Maximum resolution: 2688 x 1520 pixels
Video compression formats: H.265, H.265+, H.264+, H.264
Bit rate: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Image quality adjustment: Sharpness, Contrast, Mirror, Saturation, Brightness
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Digital Wide Dynamic Range (DWDR): Yes
Back Light Compensation (BLC): Yes
Video recording: Yes

Night vision
Night vision: Yes
LED type: IR/White

Lens system
Identify distance: 21 m
Optical zoom: 5x
Maximum aperture number: 1.6
Detect distance: 200 m
Focus: Motorized
Observe distance: 84 m
Auto focus: Yes
Recognize distance: 40 m
