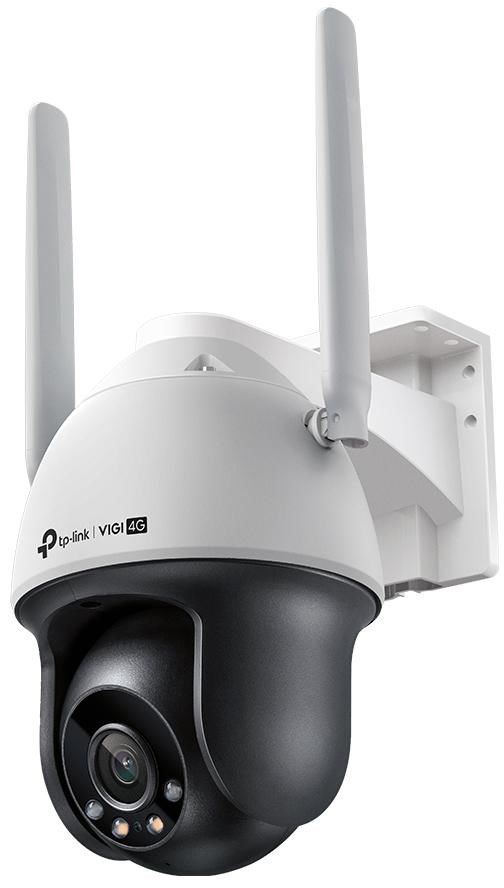

TP-Link IPCam VIGI C540-4G(4mm) 4MP 4G LTE Full-Color

Features
Basic event: Motion Detection, Camera Tampering Detection, Exception

Design
International Protection (IP) code: IP66
Product colour: Black, White
Housing material: Plastic
Form factor: Turret
Mounting type: Ceiling/wall

Power
Power source type: DC
DC output voltage: 12

Security
IP address filtering: Yes
HTTPS encryption: Yes
Digest authentication: Yes
Intelligent Video Surveillance (IVS) system features: Human detection
Mirror: Yes
Password protection: Yes

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Management features
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection

Weight & dimensions
Height: 201 mm
Weight: 690 g
Depth: 182 mm
Width: 120 mm

Network
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 3 channels
4G standard: LTE-TDD & LTE-FDD
SIM card slot: Yes
3G standards: WCDMA
SIM card type: NanoSIM
Live view: Yes
Certification: RCM, BSMI, VCCI, NTRA, KC

Performance
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Auto patrol mode: Yes
Luminous flux: 0.005 lm

Packaging data
Package height: 243 mm
Package weight: 1.16 kg
Package depth: 213 mm
Package width: 163 mm

Packaging content
Number of cameras: 1
Mounting kit: Yes

Audio
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 52 dB
Bit rate range: 64 - 64 Kbit/s
Sample rate: 8 kHz
Built-in speaker(s): Yes

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt speed: 44 °/sec
Tilt angle range: 0 - 120°
Camera shutter speed: 1/3 - 1/10000 s
Pan range: 0 - 348°
Pan speed: 44 °/sec
Number of Privacy masking areas: 4
Lens viewing angle, horizontal: 80°
Lens viewing angle, diagonal: 94°
Lens viewing angle, vertical: 43°
Camera tilt control: Yes
Camera pan control: Yes

Image sensor
Optical sensor size: 25.4 / 3.06 mm (1 / 3.06")
Sensor type: CMOS

Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 640 x 480 (VGA), 2048 x 1280, 320 x 240, 352 x 288, 2304 x 1296, 2560 x 1440
Frame rate: 30 fps
Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Bit rate: 256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR): Yes
Noise reduction technology: 3D noise reduction
Video compression formats: H.264+, H.265, H.264, H.265+
Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
3D positioning: Yes
Video streaming: Yes
Image quality adjustment: Saturation, Sharpness, Contrast, Mirror, Brightness
Privacy masking: Yes

Night vision
Night vision distance: 30 m
Number of illumination LEDs: 4
LED type: IR/White
Night vision: Yes

Lens system
Zoom capability: Yes
Detect distance: 80 m
Recognize distance: 16 m
Maximum aperture number: 1.6
Identify distance: 8 m
Observe distance: 33 m
Minimum aperture number: 1.6
Lens diameter: 4 mm
Number of lenses: 1

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.

Sustainability
Compliance certificates: RoHS, CE
