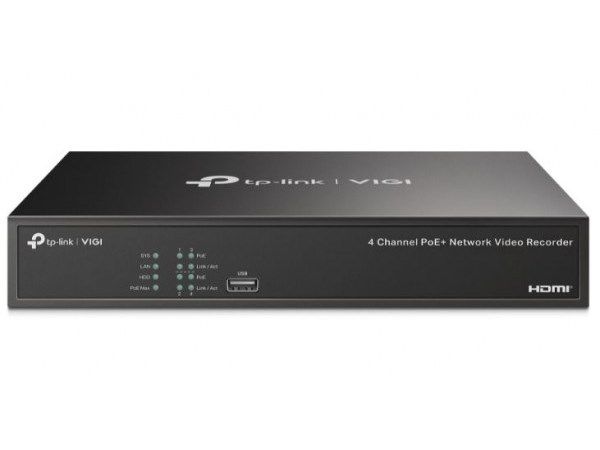

TP-Link IPCam VIGI NVR1004H Channel Network Video Recorder

Features
Product colour: Black
LED indicators: Yes
Reset button: Yes

Power
Power consumption (typical): 4.25 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -10 - 55 °C
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions
Width: 246.2 mm
Depth: 148.2 mm
Package weight: 950 g
Weight: 590 g
Height: 45 mm

System requirements
Browser supported: Chrome (57+), Firefox (52+), Edge (91+)
Mobile operating systems supported: Android, iOS
Supported resolutions: 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720

Performance
Video formats supported: H.264+, H.264, H.265+, H.265
Backup function: Yes
Video recording modes: 1080p, 720p, 2160p
Resolution at capture speed: 3840x2160@30fps, 1280x720@60fps, 1920x1080@60fps
Audio formats supported: G.726, G.711u
Maximum frame rate: 30 fps
Recording modes: Manual, Schedule
Video input channels: 4 channels
Input bandwidth: 80 Mbit/s
Video motion detection: Yes
Maximum resolution: 3840 x 2160 pixels
Output bandwidth: 60 Mbit/s

Packaging content
AC adapter included: Yes
Quick installation guide: Yes

Wireless LAN features
Wi-Fi: No

Ports & interfaces
DC-in jack: Yes
Power over Ethernet (PoE) ports quantity: 1
VGA (D-Sub) output ports: 1
Audio RCA inputs: 1
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)
Ethernet LAN (RJ-45) ports: 1
HDMI output: Yes
Audio RCA outputs: 1
USB 2.0 ports quantity: 2
HDMI ports quantity: 1

Hard drive
HDD interface: SATA
HDD capacity: 0 GB
Maximum storage capacity: 10 TB

Safety warning
Warnings: The product must be disposed of properly in accordance with local regulations for the disposal of electronics., The appliance should be installed by a qualified professional., Do not expose the device to moisture or extreme temperatures.
