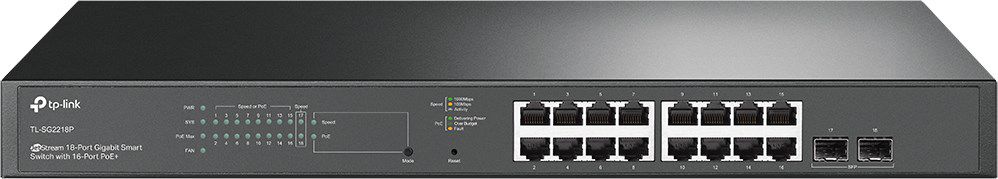

TP-Link JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

Design
Form factor: 1U
Product colour: Black
LED indicators: Yes
Rack mounting: Yes

Power
Power supply included: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power source: DC/PoE
Power consumption (max): 181.4 W

Security
BPDU filtering/protection: Yes
DHCP features: DHCP snooping, DHCP client, DHCP relay
Authentication: MAC-based authentication, Port-based authentication
SSH/SSL support: Yes
MAC address filtering: Yes
Loop protection: Yes
Access Control List (ACL): Yes
Static port security: Yes

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 619.06 BTU/h
Storage relative humidity (H-H): 5 - 90%

Management features
Configuring Location Settings (CLI): Yes
Cloud-managed: Yes
ARP inspection: Yes
Switch layer: L2/L2+
System event log: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes

Weight & dimensions
Depth: 180 mm
Height: 44 mm
Width: 440 mm

Network
Policy-based routing: Yes
Spanning tree protocol: Yes
IP routing: Yes
Link aggregation: Yes
Flow control support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3i, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s
10G support: No
Rate limiting: Yes
VLAN support: Yes
Broadcast storm control: Yes

Packaging data
Package type: Box

Packaging content
Cables included: LAN (RJ-45)
User guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 16
SFP module slots quantity: 2

Data transmission
Forwarding rate: 26.78 Mpps
Jumbo frames: 9
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Switching capacity: 26.78 Gbit/s
Jumbo frames support: Yes

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE): Yes

Multicast features
Multicast features: Multicast forwarding
Multicast support: Yes
