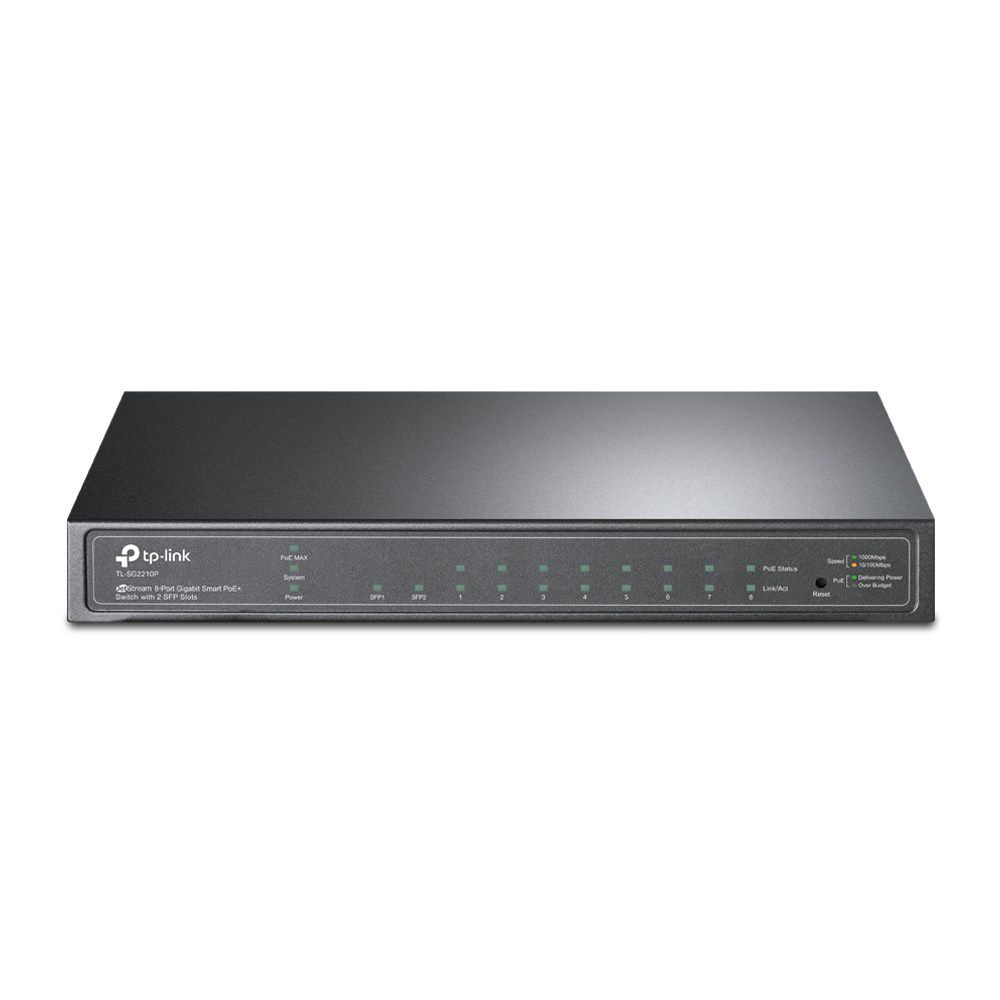

TP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

Certification: CE, FCC, RoHS

Design
LED indicators: PoE, Link, Power
Product colour: Black

Power
Power consumption (max): 75.3 W
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Power source: AC
Power supply included: Yes

Security
MAC address filtering: Yes
Security algorithms: SSH, SNMP, SSH-2
IGMP snooping: Yes
Access Control List (ACL): Yes
DHCP features: DHCP client, DHCPv6 snooping, DHCPv6 client, DHCP snooping
SSH/SSL support: Yes
BPDU filtering/protection: Yes

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
MIB support: Y
Switch layer: L2

Weight & dimensions
Width: 209 mm
Depth: 126 mm
Height: 26 mm

Network
Networking standards: IEEE 802.3i, IEEE 802.3af, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ab, IEEE 802.1p
Broadcast storm control: Yes
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 1000BASE-TX
Spanning tree protocol: Yes
VLAN support: Yes
Port mirroring: Yes
Link aggregation: Yes
Virtual LAN features: MAC address-based VLAN, Voice VLAN, Multicast VLAN, Protocol-based VLAN
10G support: No
Flow control support: Yes
Number of VLANs: 4000
Rate limiting: Yes
Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Compatible operating systems: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Performance
Fanless: Yes

Packaging data
Package width: 240 mm
Quick start guide: Yes
Package depth: 315 mm
Package weight: 1.25 kg
Cables included: AC
Package height: 70 mm

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45
Basic switching RJ-45 Ethernet ports quantity: 8
Fiber optic connector: SFP
Fiber ports quantity: 2
SFP module slots quantity: 2

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
Number of queues: 4
Packet buffer memory: 4.1 MB
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 58 W
Power over Ethernet plus (PoE+) ports quantity: 8

Multicast features
Multicast support: Yes

Optical fiber
Fiber type: Multi-mode
Fiber ethernet cabling technology: 1000BASE-X, 100BASE-FX
