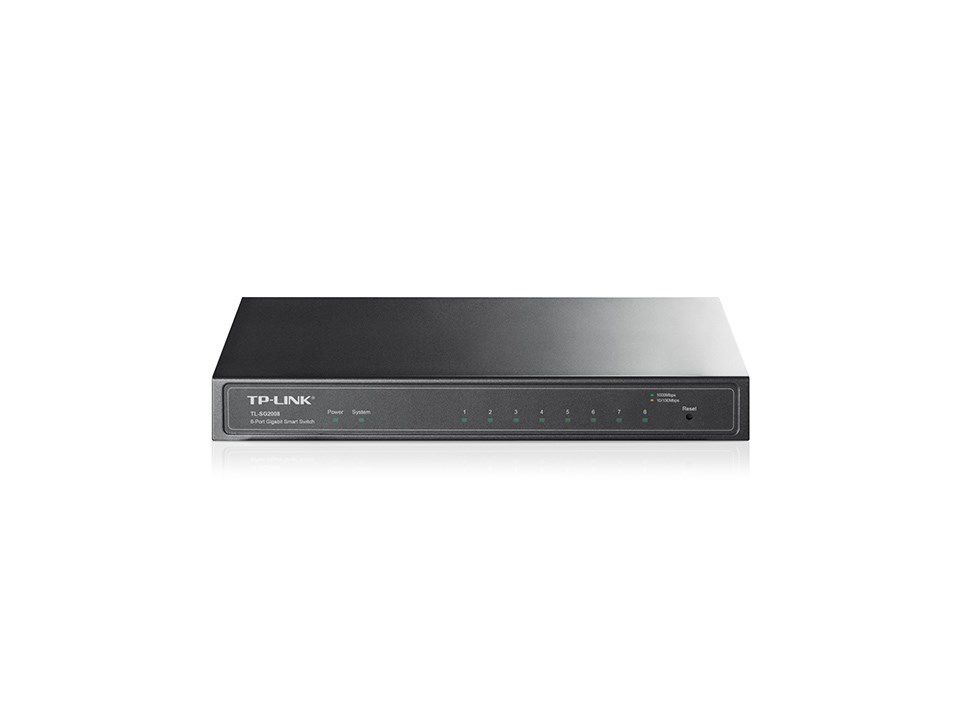

TP-Link JetStream 8-Port Gigabit Smart Switch

Design
Product colour: Black
LED indicators: Yes
Wall mountable: Yes

Power
Input current: 1 A
Input voltage: 12 V
Power source: DC
Power consumption (max): 6.42 W
Power supply included: Yes

Security
Security algorithms: SSH, SSL/TLS, SSH-2
IGMP snooping: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping, DHCP snooping
Access Control List (ACL): Yes
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
SSH/SSL support: Yes

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%

Management features
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L2/L2+
MIB support: Y
Cloud-managed: Yes
ARP inspection: Yes
System event log: Yes

Weight & dimensions
Depth: 126 mm
Height: 26 mm
Width: 209 mm

Network
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ad, IEEE 802.1s
VLAN support: Yes
Port mirroring: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
10G support: No
Number of VLANs: 4000
Flow control support: Yes
Virtual LAN features: MAC address-based VLAN, Tagged VLAN, Voice VLAN, Protocol-based VLAN
Cable types supported: Cat4, Cat5, Cat5e, Cat3
Spanning tree protocol: Yes
Broadcast storm control: Yes
Link aggregation: Yes
Rate limiting: Yes

Performance
Internal memory: 256 MB
Flash memory: 32 MB
Fanless: Yes

Packaging content
User guide: Yes
Cables included: AC

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes

Ports & interfaces
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Jumbo frames support: Yes
Switching capacity: 16 Gbit/s
Number of static routes: 32
Forwarding rate: 11.9 Mpps
Store-and-forward: Yes
Number of IP interfaces: 16
Jumbo frames: 9000
Static route: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
