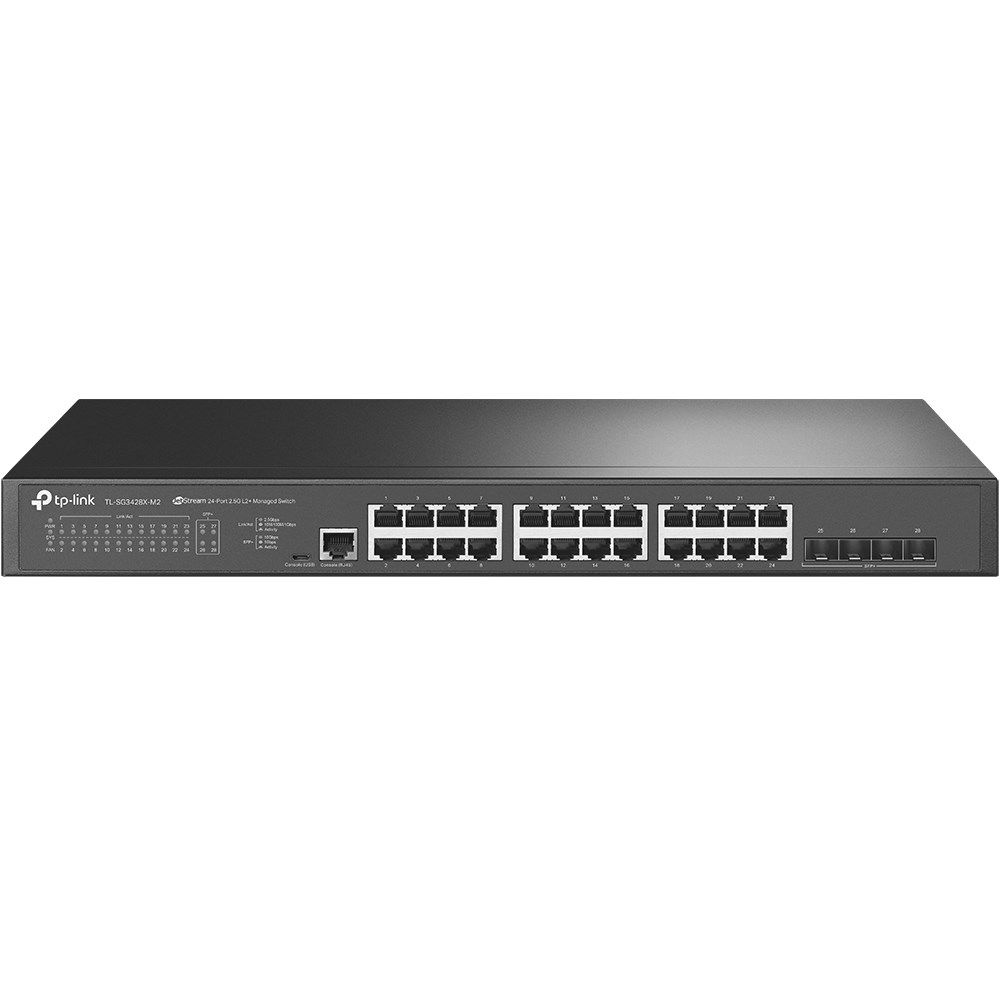

TP-Link JetStream TL-SG3428X-M2 network switch Managed L2+ 2.5G Ethernet (100 /1000 /2500) 1U Black

Design
Number of fans: 1 fan(s)
Form factor: 1U
LED indicators: Yes
Product colour: Black
Rack mounting: Yes

Power
AC input voltage: 100 - 240 V
Power supply included: Yes
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 45.1 W

Security
DHCP features: DHCPv6 snooping, DHCP snooping, DHCP client, DHCP relay, DHCPv6 client, DHCP server
IP-MAC-Port binding: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
Loop protection: Yes
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
IGMP snooping: Yes
Access Control List (ACL): Yes
Authentication type: AAA, RADIUS, TACACS+

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 154.38 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Management features
System event log: Yes
Web-based management: Yes
Cloud-managed: Yes
Switch layer: L2+
Quality of Service (QoS) support: Yes
Switch type: Managed
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
MIB support: Yes

Weight & dimensions
Depth: 180 mm
Width: 440 mm
Height: 44 mm

Network
Spanning tree protocol: Yes
Virtual LAN features: Voice VLAN, Tagged VLAN, Private VLAN, Protocol-based VLAN
Networking standards: IEEE 802.3u, IEEE 802.1x, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ab
Active link detection: Yes
Flow control support: Yes
Broadcast storm control: Yes
10G support: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
IPv4 routes: 48
Port mirroring: Yes
Link aggregation: Yes
Rate limiting: Yes
Policy-based routing: Yes
IPv6 routes: 48

Packaging data
Package width: 528 mm
Package depth: 250 mm
Package height: 80 mm
Package weight: 3 kg

Packaging content
Quick start guide: Yes
Cables included: LAN (RJ-45)
Certification: CE, FCC, RoHS

Certificates
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Protocols
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Management protocols: SNMP v1/v2c/v3, SNTP
IPv6 FIB entries: 100
IPv4 FIB entries: 100

Ports & interfaces
Console port: RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports quantity: 24
2.5G Ethernet (copper) ports quantity: 24
Power connector: AC-in jack
SFP+ module slots quantity: 4
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

Data transmission
Jumbo frames: 9000
Jumbo frames support: Yes
Store-and-forward: Yes
Forwarding rate: 148.8 Mpps
Packet buffer memory: 16 MB
MAC address table: 32000 entries
Switching capacity: 200 Gbit/s
Number of static routes: 48
Static route: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
