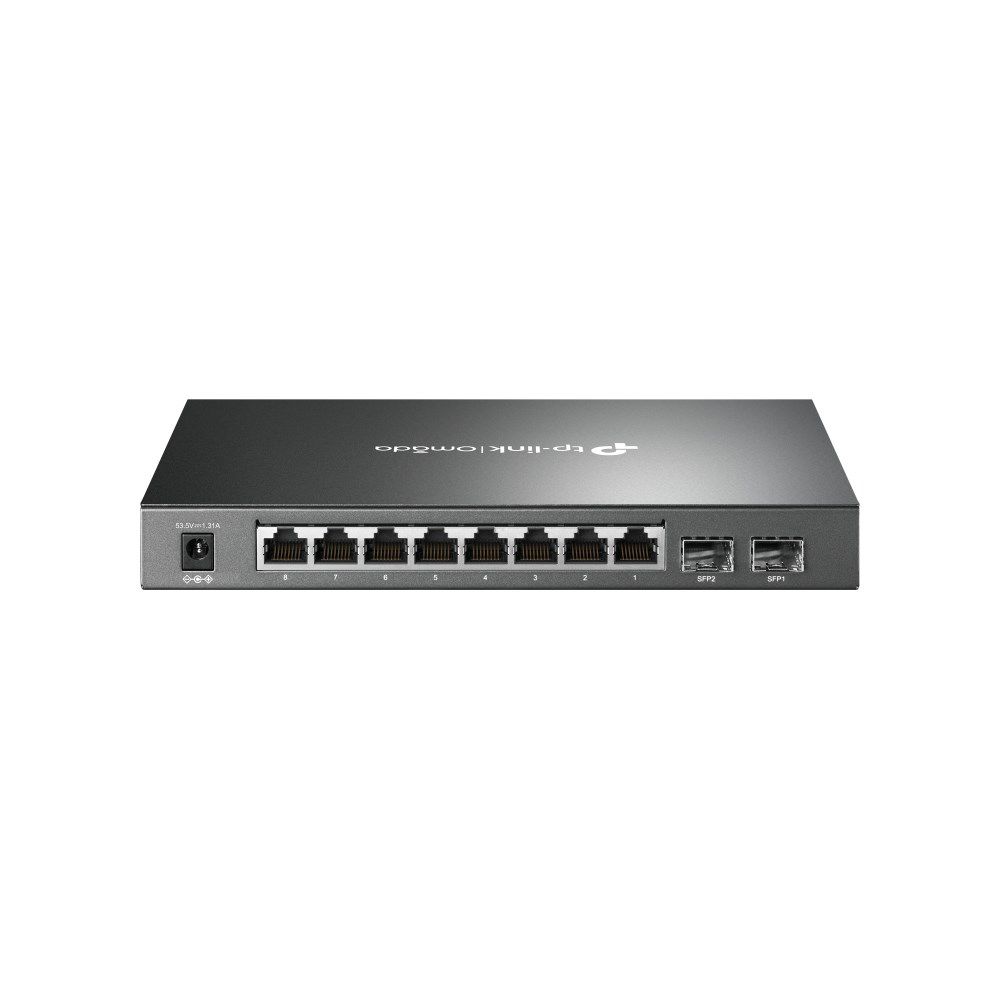

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

Design
Rack mounting: Yes
Number of fans: 1 fan(s)
Product colour: Black
Form factor: 1U

Power
Power source: AC
Power consumption (max): 173.9 W
Power supply included: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V

Security
Security algorithms: SSL/TLS, EAP-TTLS, HTTPS, SNMPv3, EAP-LEAP, SSH, SNMPv2, SSH-2, EAP-TLS, SNMP, EAP-MD5
SSH/SSL support: Yes
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
BPDU filtering/protection: Yes
DHCP features: DHCP client, DHCP relay, DHCPv6 snooping, DHCP snooping, DHCP server, DHCPv6 client
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Access Control List (ACL): Yes

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 594.46 BTU/h

Management features
Web-based management: Yes
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
ARP inspection: Yes
Switch layer: L2/L2+
System event log: Yes
Quality of Service (QoS) support: Yes
Configuring Location Settings (CLI): Yes
Switch type: Managed
Cloud-managed: Yes

Weight & dimensions
Depth: 180 mm
Width: 294 mm
Height: 44 mm

Network
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
Networking standards: IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.1x, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.1w, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s
Virtual LAN features: Multicast VLAN, Protocol-based VLAN, Tagged VLAN, MAC address-based VLAN, Voice VLAN
Port mirroring: Yes
Flow control support: Yes
Spanning tree protocol: Yes
Broadcast storm control: Yes
Link aggregation: Yes
Number of VLANs: 4000
Rate limiting: Yes
VLAN support: Yes
10G support: No

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports quantity: 8
SFP module slots quantity: 2

Data transmission
Packet buffer memory: 4.1 MB
MAC address table: 8000 entries
Switching capacity: 20 Gbit/s
Forwarding rate: 14.9 Mpps
Jumbo frames: 9000
Jumbo frames support: Yes
Number of queues: 8

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes

Multicast features
Multicast support: Yes

Optical fiber
Fiber ethernet cabling technology: 1000BASE-X, 100BASE-FX
