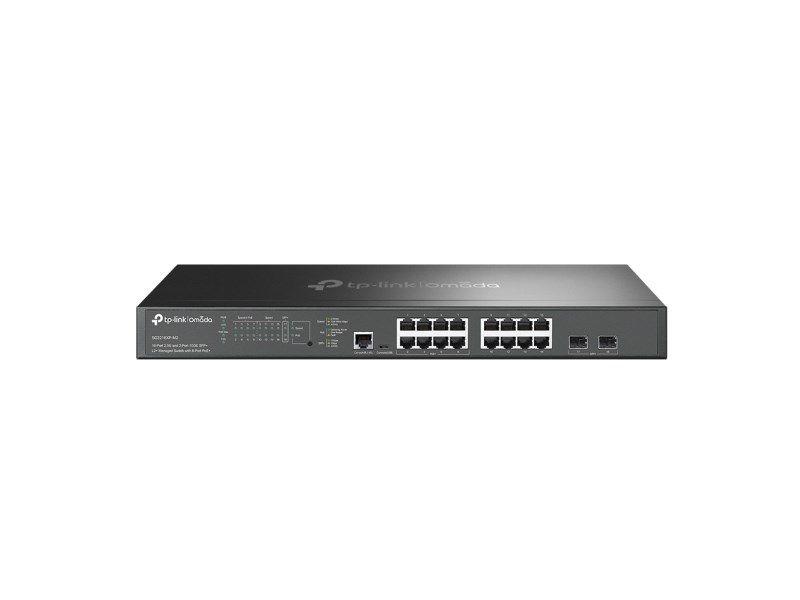

TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

Design
LED indicators: Yes
Form factor: 1U
Product colour: Black
Number of fans: 2 fan(s)
Rack mounting: Yes

Power
AC input frequency: 50/60 Hz
Power source: AC
AC input voltage: 100 - 240 V
Power consumption (max): 299.4 W
Power supply included: Yes

Security
Security algorithms: SSL/TLS, HTTPS, SSH-2, SSH
MAC address filtering: Yes
Access Control List (ACL): Yes
Loop protection: Yes
IGMP snooping: Yes
Static port security: Yes
Password protection: Yes
Authentication type: AAA, TACACS+
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
DHCP features: DHCP snooping, DHCP server, DHCPv6 snooping, DHCP client, DHCP relay, DHCPv6 client
Queue scheduling algorithms: SP, Weighted Round Robin (WRR), WRR+SP
Authentication: MAC-based authentication, Port-based authentication
SSH/SSL support: Yes

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 1021.64 BTU/h

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
Switch type: Managed
Cloud-managed: Yes
Switch layer: L2+
System event log: Yes

Weight & dimensions
Height: 44 mm
Depth: 180 mm
Width: 440 mm

Network
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Networking standards: IEEE 802.1s, IEEE 802.1w, IEEE 802.1D
Rate limiting: Yes
VLAN support: Yes
10G support: Yes
Virtual LAN features: Voice VLAN, Port-based VLAN, Tagged VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN
IP routing: Yes
Spanning tree protocol: Yes
Port mirroring: Yes
Head-of-line (HOL) blocking: Yes
Flow control support: Yes
Broadcast storm control: Yes
Link aggregation: Yes

Packaging data
Package type: Box

Packaging content
Cables included: AC
Quick start guide: Yes
Certification: CE, FCC, RoHS

Certificates
Compliance certificates: RoHS, Federal Communications Commission (FCC)

Protocols
Management protocols: SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 16
SFP+ module slots quantity: 2
Console port: RJ-45/micro-USB

Data transmission
Forwarding rate: 89.28 Mpps
Switching capacity: 120 Gbit/s
Number of IP interfaces: 32
Jumbo frames: 9000
Jumbo frames support: Yes
Packet buffer memory: 12 MB
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 48

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 8

Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y

Sustainability
Sustainability compliance: Yes
