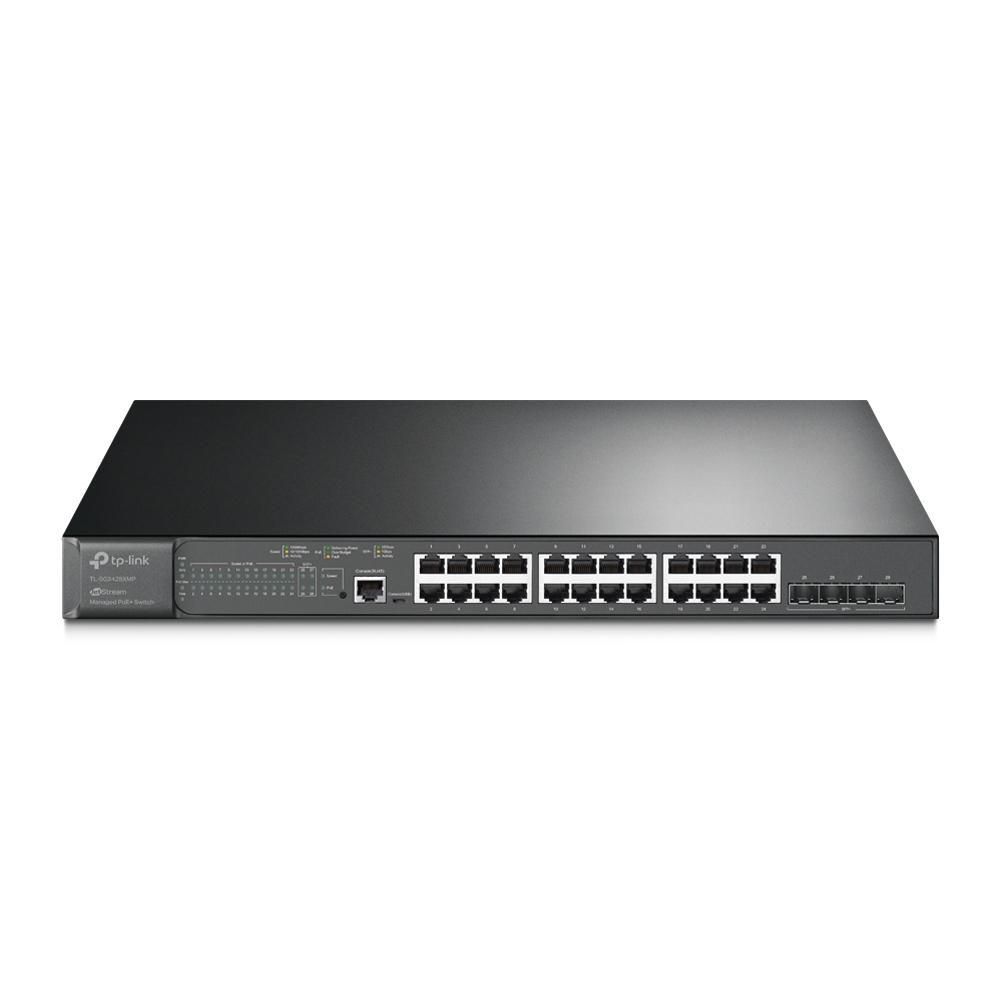

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

Design
LED indicators: Yes
Number of fans: 2 fan(s)
Product colour: Black
Rack mounting: Yes
Form factor: 1U

Power
AC input frequency: 50/60 Hz
Power supply included: Yes
AC input voltage: 100 - 240 V
Power source: AC
Power consumption (max): 486.2 W

Security
DHCP features: DHCPv6 snooping, DHCPv6 client, DHCP server, DHCP client, DHCP relay, DHCP snooping
IP-MAC-Port binding: Yes
IGMP snooping: Yes
Access Control List (ACL): Yes
BPDU filtering/protection: Yes
SSH/SSL support: Yes
Loop protection: Yes

Operational conditions
Heat dissipation: 1658.78 BTU/h
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 90%

Management features
MIB support: Yes
Cloud-managed: Yes
Web-based management: Yes
Switch layer: L2+
System event log: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 440 mm
Depth: 330 mm
Height: 44 mm

Network
Port mirroring: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1s, IEEE 802.11d, IEEE 802.1w
Link aggregation: Yes
Spanning tree protocol: Yes
Virtual LAN features: Port-based VLAN, MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Private VLAN, Voice VLAN
Broadcast storm control: Yes
10G support: Yes
Flow control support: Yes
Number of VLANs: 4000
Policy-based routing: Yes
Rate limiting: Yes
Active link detection: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes

Packaging content
Quick start guide: Yes
Cables included: LAN (RJ-45)

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP

Ports & interfaces
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
SFP+ module slots quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports quantity: 24

Data transmission
Number of static routes: 48
MAC address table: 16000 entries
Forwarding rate: 95.23 Mpps
Switching capacity: 128 Gbit/s
Jumbo frames: 9000
Jumbo frames support: Yes
Packet buffer memory: 12 MB

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 384 W

Multicast features
Multicast support: Yes
