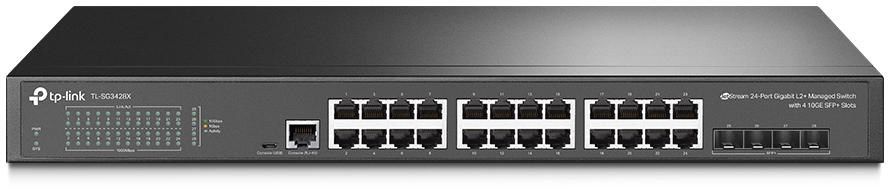

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Design
Product colour: Black
Form factor: 1U
LED indicators: Yes
Rack mounting: Yes
Number of fans: 0 fan(s)

Power
Power source: AC
AC input frequency: 50/60 Hz
Power consumption (max): 23.6 W
AC input voltage: 100 - 240 V
Power supply included: Yes

Security
DHCP features: DHCP client, DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping, DHCP snooping
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protection: Yes
Loop protection: Yes
SSH/SSL support: Yes
Access Control List (ACL): Yes
Authentication type: AAA, RADIUS, TACACS+

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 45 °C
Heat dissipation: 80.52 BTU/h

Management features
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch layer: L2+/L3
Switch type: Managed
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
System event log: Yes
MIB support: Yes
Cloud-managed: Yes

Weight & dimensions
Depth: 180 mm
Width: 440 mm
Height: 44 mm

Network
VLAN support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae
10G support: Yes
Number of VLANs: 4000
Virtual LAN features: Voice VLAN, Tagged VLAN, Protocol-based VLAN, Private VLAN
Flow control support: Yes
Broadcast storm control: Yes
Port mirroring: Yes
Head-of-line (HOL) blocking: Yes
Link aggregation: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Policy-based routing: Yes
IPv6 routes: 48
Active link detection: Yes
IPv4 routes: 48

Performance
Fanless: Yes

Packaging content
Quick start guide: Yes
Cables included: LAN (RJ-45)

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 Telnet, IPv6 tracert
GARP VLAN Registration Protocol (GVRP): Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB

Data transmission
Switching capacity: 128 Gbit/s
Packet buffer memory: 12 MB
MAC address table: 16000 entries
Jumbo frames support: Yes
Store-and-forward: Yes
Static route: Yes
Jumbo frames: 9000
Forwarding rate: 95.23 Mpps
Number of static routes: 48

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
