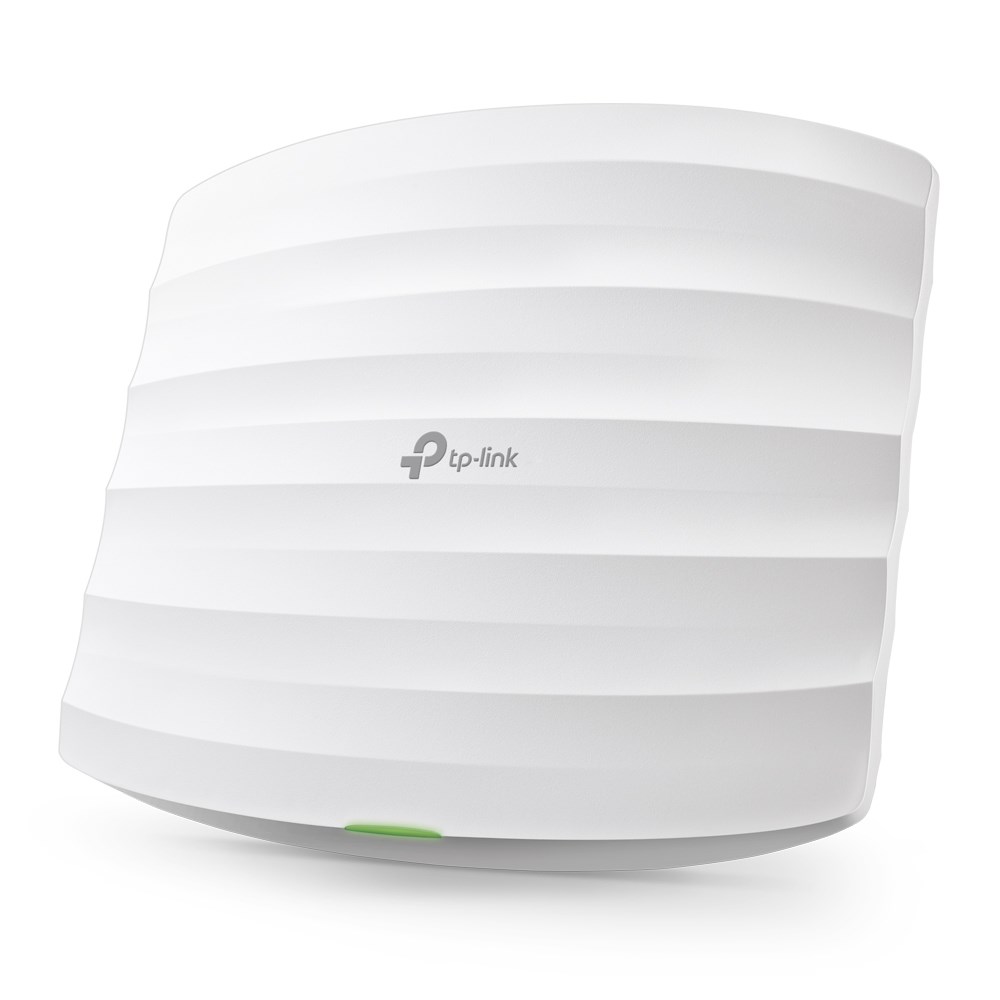

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

Receiver sensitivity: 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Features
Transmitting power (CE): 19 dBm
5 GHz: No
Ethernet LAN data rates: 10, 100
Rate limiting: Yes
Networking standards: IEEE 802.1x, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Wireless isolation: Yes
Transmitting power (FCC): 21 dBm
Frequency band: 2.4 - 2.4835 GHz
Quality of Service (QoS) support: Yes
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Cabling technology: 10/100Base-T(X)
Wi-Fi Multimedia (WMM)/(WME): Yes
6 GHz: No
VLAN support: Yes
Maximum data transfer rate: 300 Mbit/s
2.4 GHz: Yes
Virtual LAN features: VLAN mapping

Design
Product colour: White
Placement: Ceiling, Wall
Reset button: Yes
LED indicators: Power

Power
Power consumption (typical): 2.8 W
AC input voltage: 24 V
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE

Security
Security algorithms: WPA-PSK, 152-bit WEP, 64-bit WEP, WPA2-Enterprise, SNMPv2, SSH, WPA2-PSK, WPA, 128-bit WEP, SNMP, HTTPS
Number of SSID supported: 8
Access Control List (ACL): Yes
Service Set Identifier (SSID) features: Multiple SSIDs
MAC address filtering: Yes

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Syslog: Yes
Web-based management: Yes

Weight & dimensions
Height: 29.7 mm
Width: 189.5 mm
Depth: 170.5 mm

Packaging data
Package type: Box
Package weight: 720 g
Package depth: 268 mm
Package width: 246 mm
Package height: 69 mm

Packaging content
Mounting kit: Yes
Quantity per pack: 1 pc(s)
Quick start guide: Yes
PoE adapter included: Yes
Cables included: AC

Certificates
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Antenna
Antenna direction type: Omni-directional
Antennas quantity: 2
Antenna type: Internal
Antenna gain level (max): 4 dBi

Logistics data
Harmonized System (HS) code: 85176990

Sustainability
Sustainability compliance: Yes
