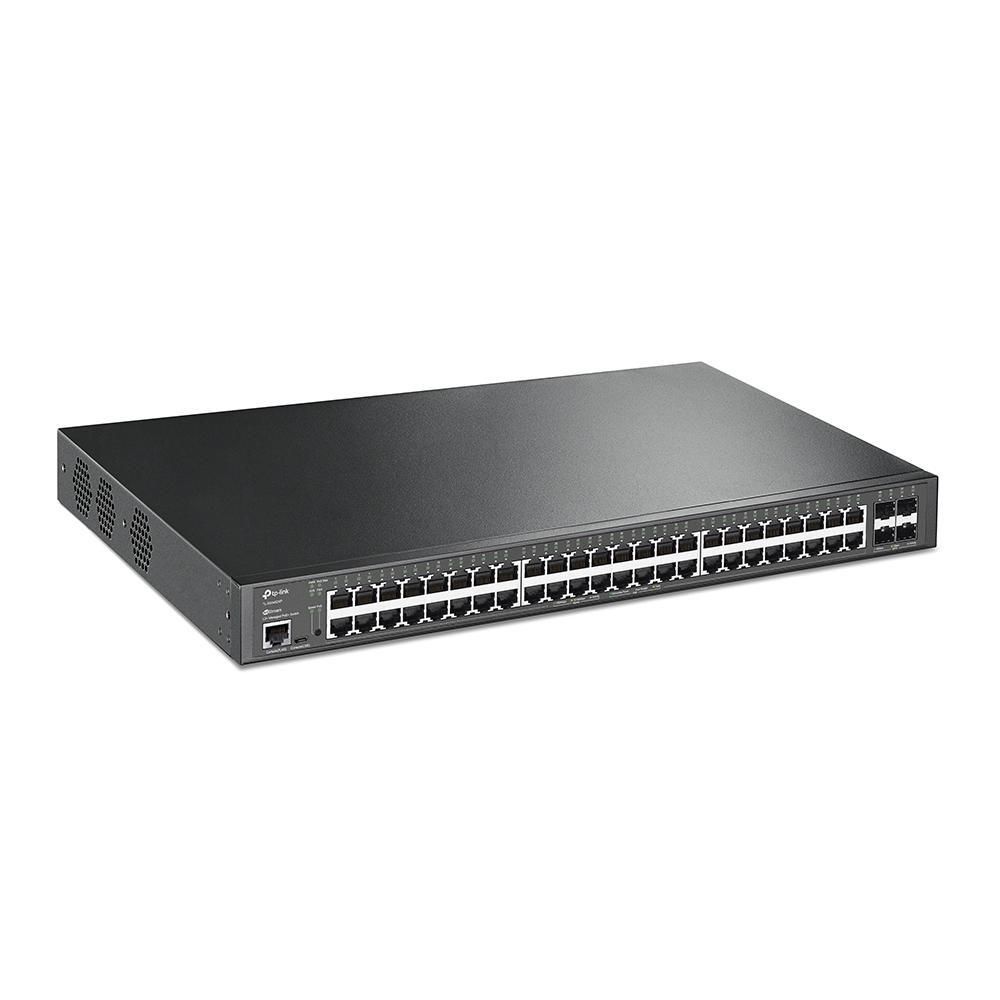

TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

Design
Product colour: Black
Reset button: Yes
Rack mounting: Yes
Number of fans: 3 fan(s)
LED indicators: Yes
Form factor: 1U

Power
AC input frequency: 50/60 Hz
Power consumption (max): 635.7 W
AC input voltage: 100 - 240 V
Power supply included: Yes
Power source: AC

Security
MAC address filtering: Yes
IGMP snooping: Yes
IP-MAC-Port binding: Yes
SSH/SSL support: Yes
Access Control List (ACL): Yes
DHCP features: DHCP client, DHCP relay, DHCP server
Authentication: Auto VLAN, Guest VLAN
BPDU filtering/protection: Yes
Static port security: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 2169.2 BTU/h
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C

Management features
Web-based management: Yes
Cloud-managed: Yes
Switch type: Managed
Switch layer: L2+
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
System event log: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 440 mm
Height: 44 mm
Depth: 330 mm

Network
Networking standards: IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3at, IEEE 802.1w, IEEE 802.3i, IEEE 802.3u
Link aggregation: Yes
Head-of-line (HOL) blocking: Yes
Rate limiting: Yes
Broadcast storm control: Yes
Port mirroring: Yes
10G support: Yes
Flow control support: Yes
Spanning tree protocol: Yes
VLAN support: Yes

Packaging content
Quick start guide: Yes
Cables included: AC

Ports & interfaces
Console port: RJ-45/Micro-USB
SFP+ module slots quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack

Data transmission
Switching capacity: 176 Gbit/s
Store-and-forward: Yes
Jumbo frames: 9000
MAC address table: 16000 entries
Jumbo frames support: Yes
Forwarding rate: 130.9 Mpps
Packet buffer memory: 12 MB

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 500 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 48

Multicast features
Multicast support: Yes
