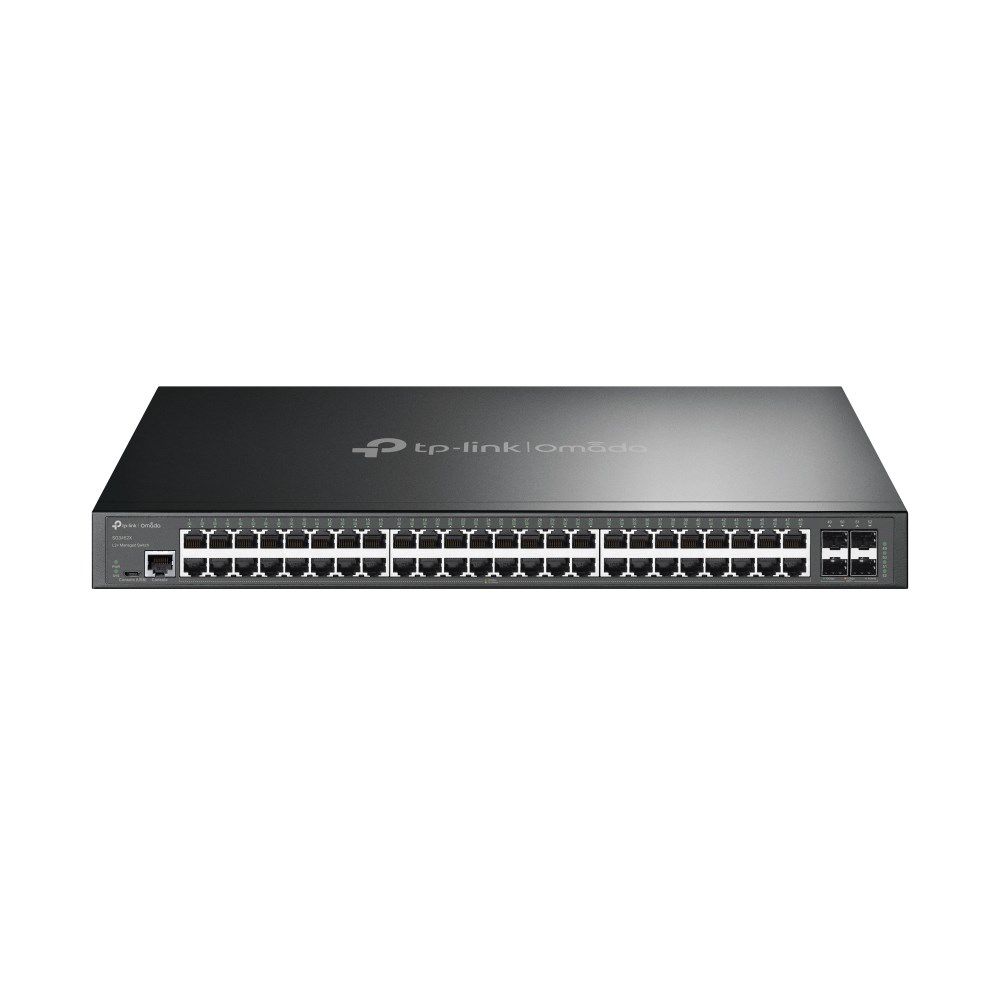

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Certification: CE, FCC, RoHS

Design
Form factor: 1U
LED indicators: Yes
Product colour: Black
Rack mounting: Yes

Power
Power supply included: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power source: AC
Power consumption (max): 32.72 W

Security
MAC address filtering: Yes
Password protection: Yes
IGMP proxy: Yes
BPDU filtering/protection: Yes
Loop protection: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
DHCP features: DHCP client, DHCP relay, DHCP server
Queue scheduling algorithms: Weighted Round Robin (WRR), SP, WRR+SP
Static port security: Yes
IP-MAC-Port binding: Yes
SSH/SSL support: Yes
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type: AAA, RADIUS, TACACS+

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 45 °C
Heat dissipation: 111.65 BTU/h

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
System event log: Yes
ARP inspection: Yes
Switch layer: L2+
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Configuring Location Settings (CLI): Yes
Cloud-managed: Yes
Huawei-proprietary MIB: Y
Public MIB: Y

Weight & dimensions
Depth: 220 mm
Height: 44 mm
Width: 440 mm

Network
Networking standards: IEEE 802.1Q, IEEE 802.1D, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w
VLAN support: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Virtual LAN features: Tagged VLAN, Voice VLAN, Private VLAN, VLAN mapping
Link aggregation: Yes
Flow control support: Yes
Number of VLANs: 4000
10G support: Yes
Port mirroring: Yes
Rate limiting: Yes
Head-of-line (HOL) blocking: Yes
IPv6 routes: 48
IPv4 routes: 48

Packaging data
Cables included: AC
Package type: Box
Quick start guide: Yes
Rack rails: Yes
Rack mount kit: Yes

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 tracert, IPv6 Telnet

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB

Data transmission
Jumbo frames support: Yes
Switching capacity: 176 Gbit/s
Static route: Yes
Forwarding rate: 130.9 Mpps
Packet buffer memory: 12 MB
Jumbo frames: 9000
MAC address table: 16000 entries
Number of static routes: 48

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
