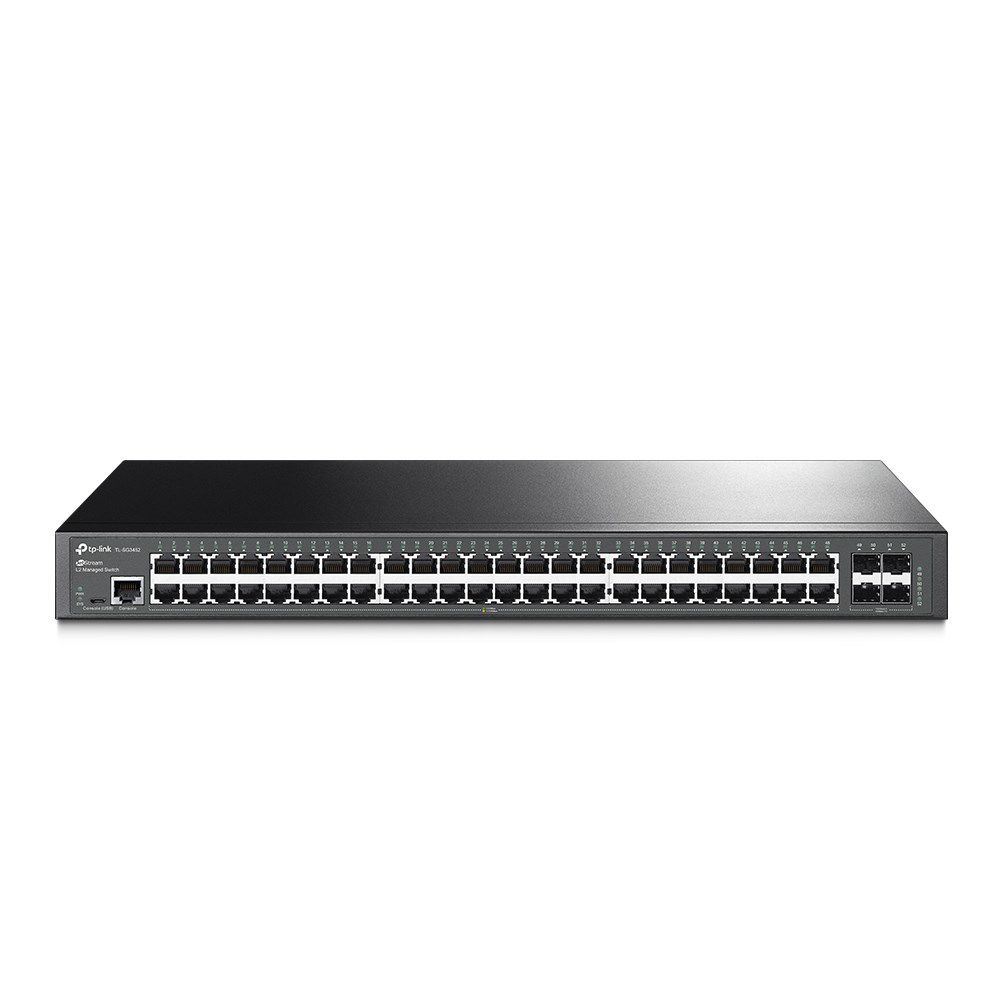

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots

Design
Rack mounting: Yes
Product colour: Black
Form factor: 1U

Power
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power supply included: Yes
Power source: AC
Power consumption (max): 34.86 W

Security
Access Control List (ACL): Yes
Authentication: MAC-based authentication, Port-based authentication
Loop protection: Yes
SSH/SSL support: Yes
DHCP features: DHCPv6 snooping, DHCP server, DHCP client, DHCP relay, DHCP snooping
MAC address filtering: Yes
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Authentication type: AAA, RADIUS, TACACS+
BPDU filtering/protection: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 118.94 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Management features
Quality of Service (QoS) support: Yes
System event log: Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L2
MIB support: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
ARP inspection: Yes

Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm

Network
Link aggregation: Yes
Networking standards: IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1D, IEEE 802.3z, IEEE 802.3i, IEEE 802.3u
VLAN support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
10G support: No
Broadcast storm control: Yes
Spanning tree protocol: Yes
Port mirroring: Yes
Number of VLANs: 4000
Flow control support: Yes
Head-of-line (HOL) blocking: Yes
Virtual LAN features: Protocol-based VLAN, Private VLAN, Voice VLAN, Port-based VLAN, Tagged VLAN
IP routing: Yes
Policy-based routing: Yes
IPv6 routes: 48
IPv4 routes: 48

Performance
Internal memory: 256 MB
Flash memory: 32 MB
Fanless: Yes

Packaging data
Package height: 100 mm
Package weight: 4.26 kg
Package depth: 336 mm
Package width: 528 mm

Packaging content
Quick start guide: Yes
Cables included: AC
Rack mount kit: Yes

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features: IPv6 Telnet, IPv6 tracert, IPv4/IPv6 access-control list (ACL), IPv6 ping
GARP VLAN Registration Protocol (GVRP): Yes

Ports & interfaces
Console port: RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 48
SFP module slots quantity: 4
Gigabit Ethernet (copper) ports quantity: 48

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frames support: Yes
Switching capacity: 104 Gbit/s
MAC address table: 16000 entries
Store-and-forward: Yes
Forwarding rate: 77.4 Mpps
Static route: Yes
Jumbo frames: 9000

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
