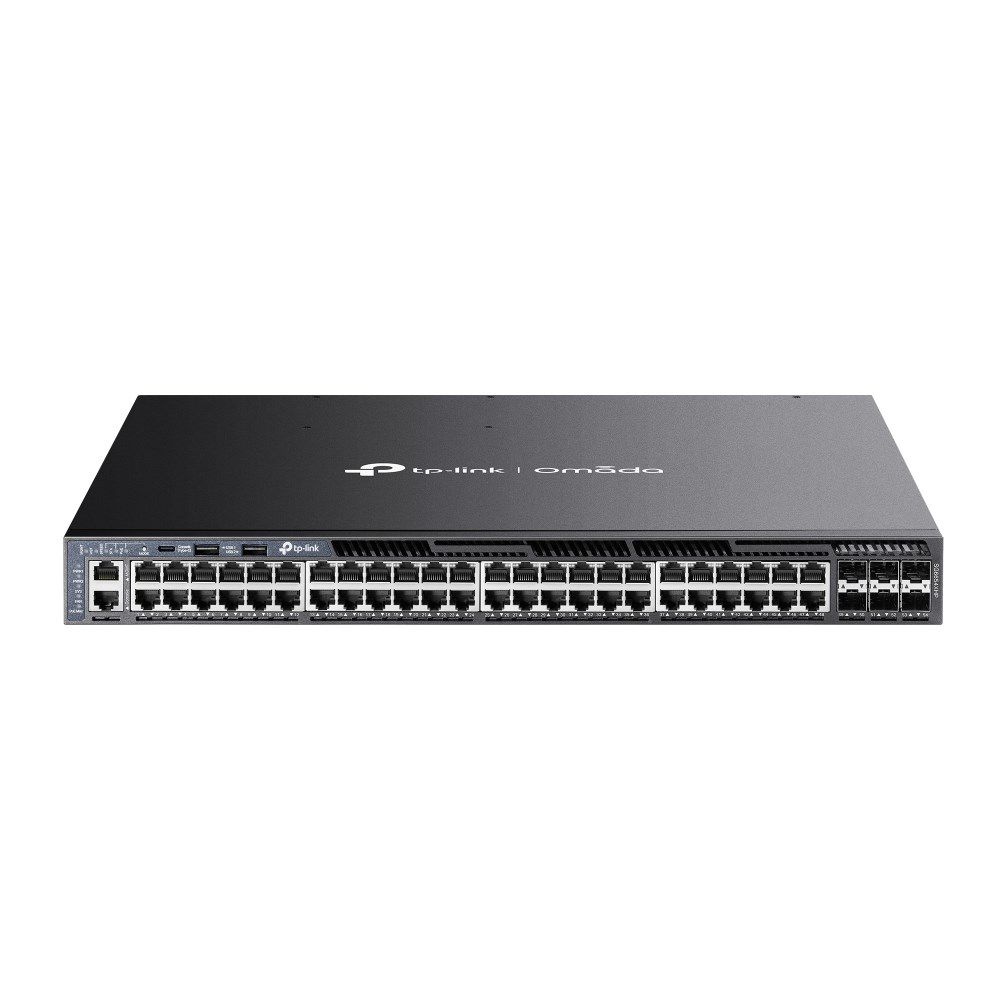

TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots

Design
Rack mounting: Yes
LED indicators: Yes
Number of fans: 4 fan(s)
Form factor: 1U
Product colour: Black
Stackable: Yes

Power
AC input voltage: 100 - 240 V
Power source: AC
AC input frequency: 50/60 Hz
Power supply included: Yes
Power consumption (max): 1767.7 W

Security
IGMP entries: 2048
DHCP features: DHCP snooping, DHCPv6 snooping, DHCP relay
SSH/SSL support: Yes
Access Control List (ACL): Yes
Loop protection: Yes
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type: RADIUS
IGMP snooping: Yes

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 6027.86 BTU/h
Storage temperature (T-T): -40 - 70 °C

Management features
Web-based management: Yes
Switch type: Managed
Cloud-managed: Yes
Switch layer: L3
Quality of Service (QoS) support: Yes
System event log: Yes
Configuring Location Settings (CLI): Yes
ARP inspection: Yes

Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 420 mm

Network
VLAN support: Yes
Port mirroring: Yes
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.1p
Ethernet LAN data rates: 10,100,1000 Mbit/s
Flow control support: Yes
IP routing: Yes
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Voice VLAN, Private VLAN
Broadcast storm control: Yes
10G support: No
Rate limiting: Yes
Spanning tree protocol: Yes
Number of VLANs: 4000

Packaging content
Manual: Yes
Cables included: LAN (RJ-45), AC

Ports & interfaces
USB 2.0 ports quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 6
Console port: RJ-45/USB Type-C

Data transmission
Packet buffer memory: 3 MB
Switching capacity: 216 Gbit/s
MAC address table: 32000 entries
Jumbo frames support: Yes
Static route: Yes
Forwarding rate: 160.7 Mpps
Jumbo frames: 9000

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 48
Total Power over Ethernet (PoE) budget: 1440 W

Multicast features
Multicast support: Yes
