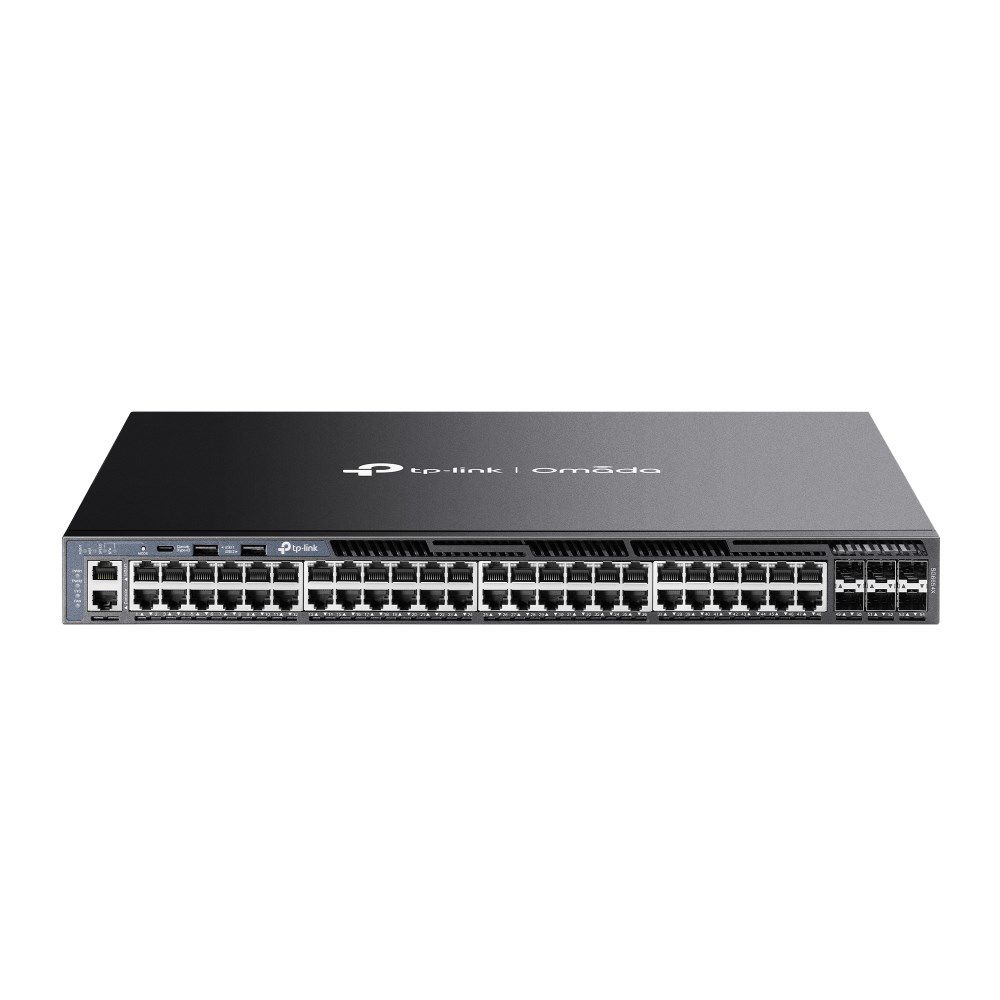

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots

Design
LED indicators: Yes
Number of fans: 4 fan(s)
Form factor: 1U
Rack mounting: Yes
Stackable: Yes
Product colour: Black

Power
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power supply included: Yes
Power consumption (max): 39.8 W
Power source: AC

Security
IGMP snooping: Yes
Authentication type: RADIUS
IGMP entries: 2048
DHCP features: DHCPv6 snooping, DHCP relay, DHCP snooping
Access Control List (ACL): Yes
Loop protection: Yes
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support: Yes

Operational conditions
Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 135.81 BTU/h
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C

Management features
Cloud-managed: Yes
Switch layer: L3
System event log: Yes
ARP inspection: Yes
Web-based management: Yes
Switch type: Managed
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 380 mm

Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Rate limiting: Yes
Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x
Broadcast storm control: Yes
Port mirroring: Yes
IP routing: Yes
Virtual LAN features: MAC address-based VLAN, Private VLAN, Multicast VLAN, Voice VLAN
Spanning tree protocol: Yes
Flow control support: Yes
10G support: No
Number of VLANs: 4000

Packaging content
Manual: Yes
Cables included: AC, LAN (RJ-45)

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45/USB Type-C
USB 2.0 ports quantity: 2
SFP+ module slots quantity: 6

Data transmission
MAC address table: 32000 entries
Static route: Yes
Packet buffer memory: 3 MB
Jumbo frames support: Yes
Switching capacity: 216 Gbit/s
Jumbo frames: 9000
Forwarding rate: 160.7 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
