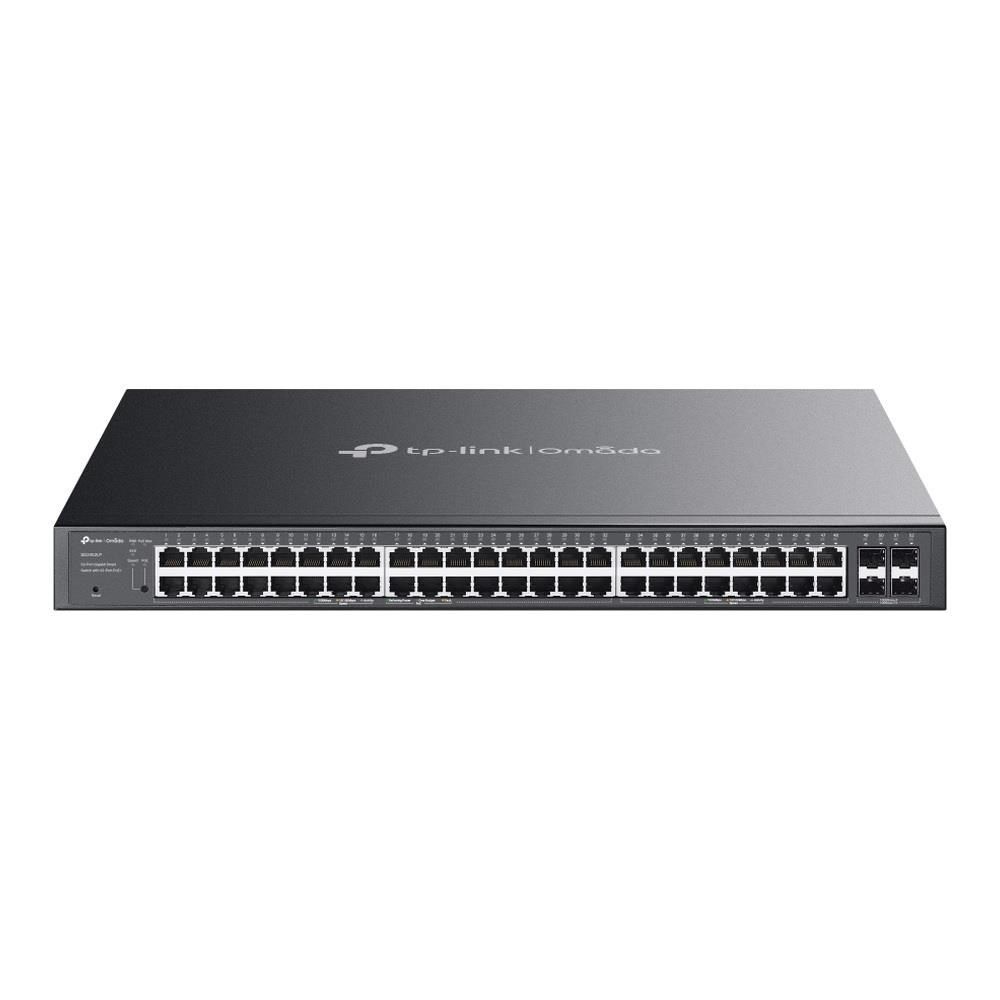

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

Design
Form factor: 1U
Product colour: Black
LED indicators: Yes
Rack mounting: Yes

Power
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 304.5 W
AC input voltage: 100 - 240 V
Power supply included: Yes

Security
Security algorithms: SNMPv3, SNMPv2, SNMP
MAC address filtering: Yes
DHCP features: DHCP server, DHCP relay
Loop protection: Yes
Authentication type: RADIUS
IGMP snooping: Yes
SSH/SSL support: Yes

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 1035.4 BTU/h

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2/L2+
System event log: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
Switch type: Managed
MIB support: Y
Cloud-managed: Yes

Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 330 mm

Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p
Link aggregation: Yes
IP routing: Yes
VLAN support: Yes
Flow control support: Yes
Active link detection: Yes
Port mirroring: Yes
Auto MDI/MDI-X: Yes
10G support: No

Ports & interfaces
Power connector: AC-in jack
SFP module slots quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Forwarding rate: 77.37 Mpps
Switching capacity: 104 Gbit/s
Jumbo frames: 9000
Jumbo frames support: Yes
Static route: Yes
MAC address table: 16000 entries

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 32
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 230 W
Power over Ethernet (PoE) power per port: 30 W

Safety warning
Warnings: Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
