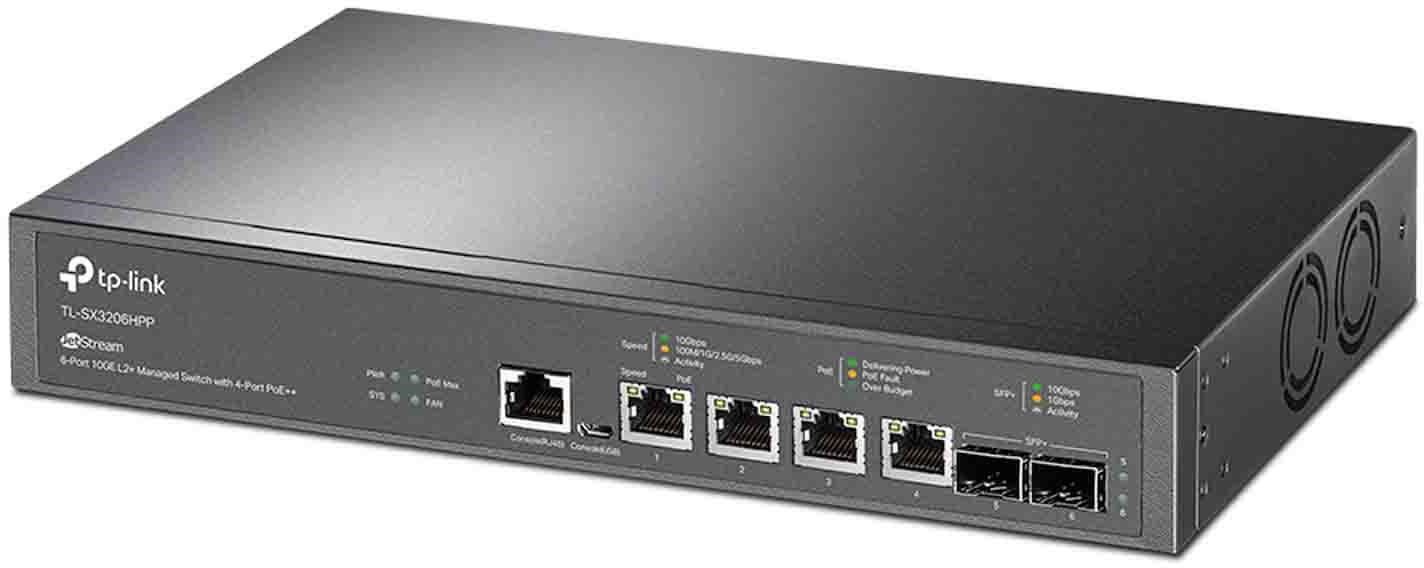

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

Design
Number of fans: 2 fan(s)
Rack mounting: Yes
Product colour: Black
LED indicators: Yes

Power
Power source: AC
Power consumption (max): 244.9 W
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Security
BPDU filtering/protection: Yes
DHCP features: DHCPv6 client, DHCP client, DHCP relay, DHCP server, DHCP snooping
Authentication type: AAA, RADIUS, TACACS+
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Authentication: Guest VLAN
Loop protection: Yes
Security algorithms: HTTPS, SSL/TLS

Operational conditions
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 835.67 BTU/h
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C

Management features
Switch type: Managed
ARP inspection: Yes
System event log: Yes
Cloud-managed: Yes
MIB support: Yes
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes
Switch layer: L2+
Web-based management: Yes

Weight & dimensions
Width: 294 mm
Height: 44 mm
Depth: 180 mm

Network
Spanning tree protocol: Yes
VLAN support: Yes
Broadcast storm control: Yes
Head-of-line (HOL) blocking: Yes
Virtual LAN features: Private VLAN, VLAN mapping, Voice VLAN, Tagged VLAN
Rate limiting: Yes
Link aggregation: Yes
IP routing: Yes
Number of VLANs: 4000
Flow control support: Yes
Routing entries: 512
Port mirroring: Yes
10G support: Yes
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3af, IEEE 802.1p, IEEE 802.3at, IEEE 802.1w, IEEE 802.3bt

Packaging content
Cables included: AC
Rack mount kit: Yes
Quick start guide: Yes

Protocols
Management protocols: SNMP v1/v2c/v3

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
SFP+ module slots quantity: 2
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)

Data transmission
Jumbo frames: 9000
Switching capacity: 120 Gbit/s
Static route: Yes
Packet buffer memory: 16 MB
MAC address table: 32000 entries
Jumbo frames support: Yes
Forwarding rate: 89.28 Mpps
Number of static routes: 48

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 200 W
Power over Ethernet (PoE) power per port: 60 W
Power over Ethernet (PoE): Yes

Multicast features
Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Multicast support: Yes
