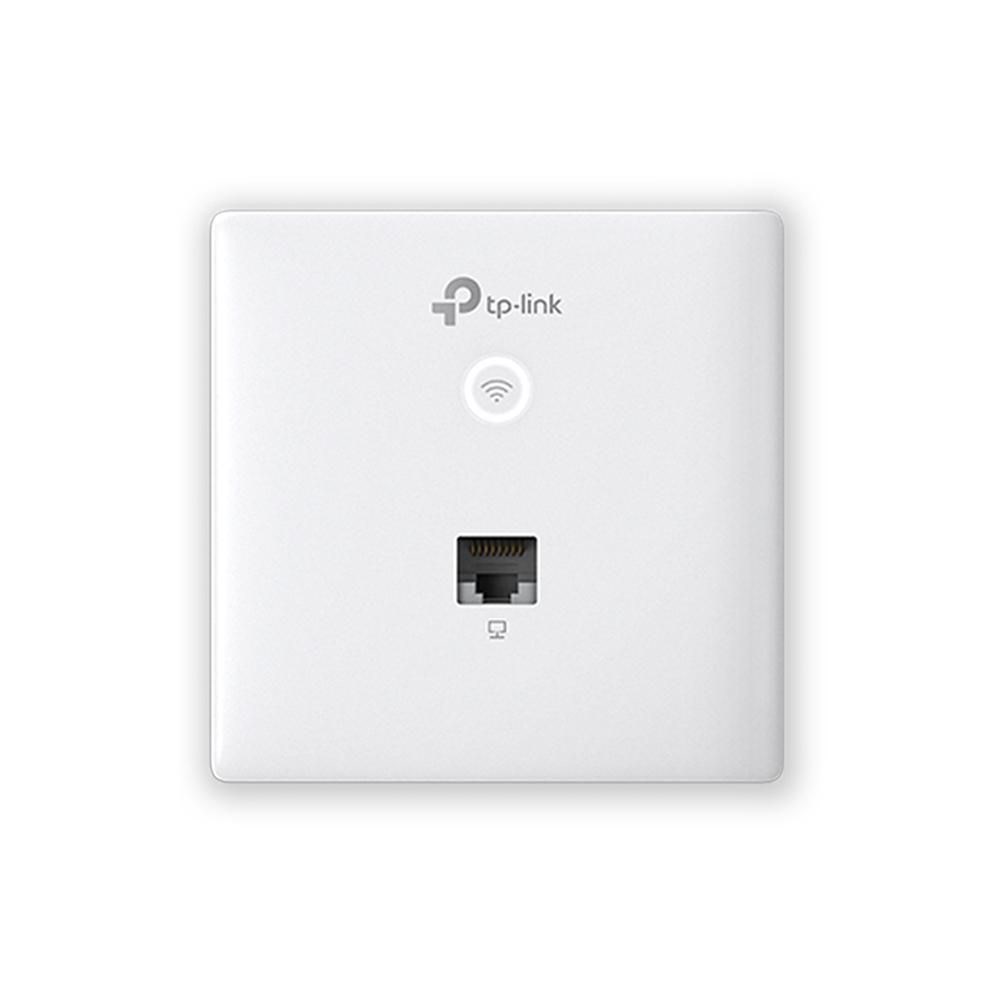

TP-LINK | Omada AC1200 Wall-Plate Access Point | EAP230-Wall | 802.11ac | 300+867 Mbit /s | 10 /100 /1000 Mbit /s | Ethernet LAN (RJ-45) ports 2 | Mesh Support | MU-MiMO Yes | Antenna type

Features
Frequency band: 2.4 - 5 GHz
MIMO: Yes
5 GHz: Yes
Maximum data transfer rate: 1167 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
2.4 GHz: Yes
Ethernet LAN data rates: 100 Mbit/s, 1000, 10
Automatic channel selection: Yes
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Rate limiting: Yes
Maximum data transfer rate (5 GHz): 867 Mbit/s
Quality of Service (QoS) support: Yes
VLAN support: Yes
MIMO type: Multi User MIMO
Automatic channel scanning: Yes
Virtual LAN features: Port-based VLAN, VLAN mapping
Cabling technology: 10/100/1000Base-T(X)
BeamForming: Yes
6 GHz: No
Band steering: Yes
Transmitting power (CE): 20 - 23 dBm
Wi-Fi Multimedia (WMM)/(WME): Yes

Design
Product colour: White
Reset button: Yes
LED indicators: Operation
Placement: Wall

Power
Power consumption (typical): 9 W
Power over Ethernet (PoE): Yes
Power consumption (max): 25.5 W

Security
MAC address filtering: Yes
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Access Control List (ACL): Yes
Security algorithms: 128-bit WEP, SNMP, WPA-PSK, 152-bit WEP, 64-bit WEP, WPA2-Enterprise, SNMPv2, WPA2-PSK, WPA

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Management features
Web-based management: Yes
Syslog: Yes

Weight & dimensions
Width: 86.8 mm
Depth: 86.8 mm
Height: 30.2 mm

Packaging data
Package width: 118 mm
Package height: 47 mm
Package depth: 130 mm
Package weight: 210 g

Packaging content
Quick start guide: Yes
Quantity per pack: 2 pc(s)
Mounting kit: Yes

Certificates
Compliance certificates: RoHS, CE

Ports & interfaces
WAN connection: Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports: 1

Antenna
Antenna type: Internal
Antennas quantity: 2
Antenna gain level (max): 3.6 dBi
Antenna features: Integrated antenna

Logistics data
Harmonized System (HS) code: 85176990

Safety warning
Warnings: Avoid direct contact with water., Electronic products should be recycled at specialist electronic waste collection facilities., Do not expose to prolonged moisture.

Sustainability
Sustainability compliance: Yes
