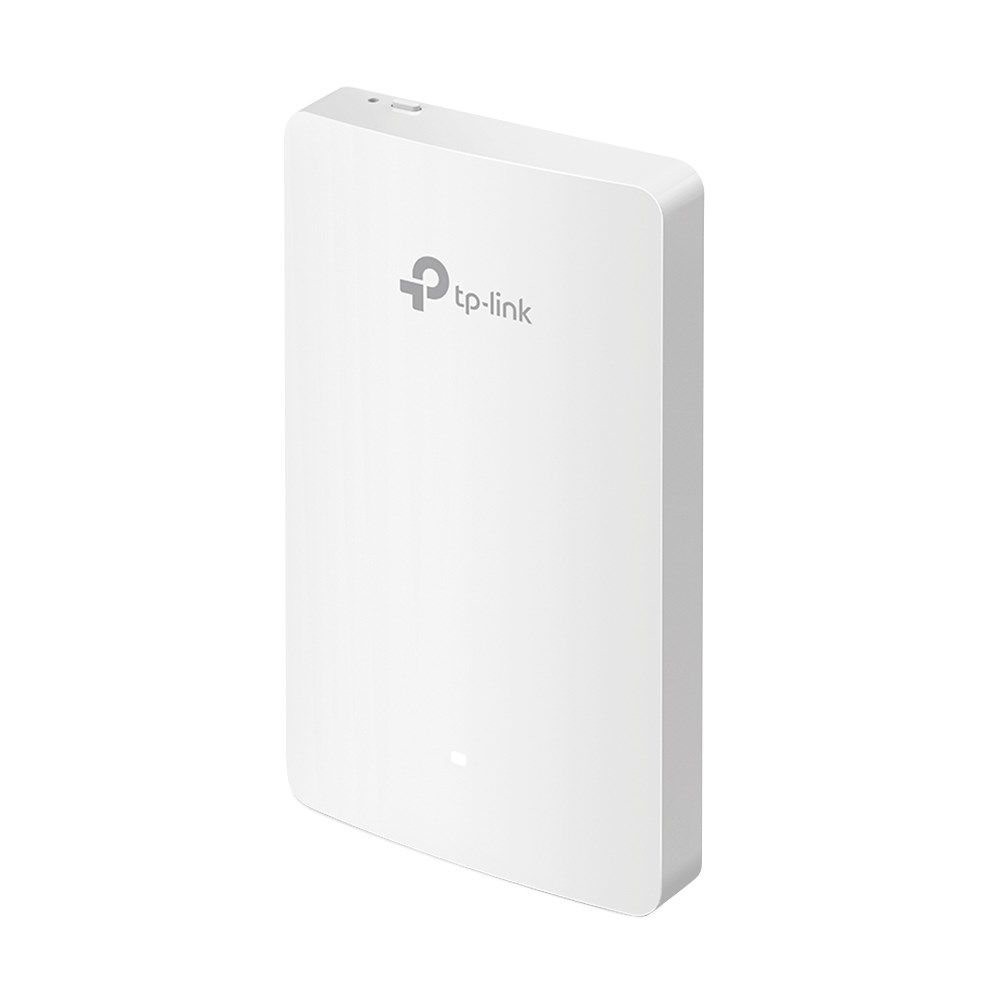

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Features
Networking standards: IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b, IEEE 802.1x
MIMO: Yes
Ethernet LAN data rates: 10, 100 Mbit/s, 1000
2.4 GHz: Yes
Frequency band: 2.4 - 5 GHz
5 GHz: Yes
Maximum data transfer rate: 1167 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Automatic channel selection: Yes
Transmitting power (CE): 20 - 23 dBm
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Wireless isolation: Yes
Maximum data transfer rate (5 GHz): 867 Mbit/s
Virtual LAN features: Port-based VLAN, VLAN mapping
BeamForming: Yes
MIMO type: Multi User MIMO
Quality of Service (QoS) support: Yes
Rate limiting: Yes
Transmitting power (FCC): 21 dBm
6 GHz: No
Band steering: Yes
VLAN support: Yes
Automatic channel scanning: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes

Design
Reset button: Yes
Product colour: White
Cable lock slot: Yes
Placement: Wall
LED indicators: Power, Status, LAN, WLAN, WAN

Power
Power consumption (typical): 24.4 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE

Security
MAC address filtering: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Access Control List (ACL): Yes
Security algorithms: 64-bit WEP, HTTPS, 802.1x RADIUS, 128-bit WEP, WPA-PSK, SNMPv3, 152-bit WEP, SNMP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK, SSH, WPA-Enterprise

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Management features
Web-based management: Yes
Syslog: Yes

Weight & dimensions
Height: 20 mm
Depth: 86 mm
Width: 143 mm

Packaging data
Package depth: 184 mm
Package width: 117 mm
Package type: Box
Package weight: 300 g
Package height: 33 mm

Packaging content
Quick start guide: Yes
Quantity per pack: 1 pc(s)
Mounting kit: Yes

Certificates
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Protocols
Universal Plug and Play (UPnP): Yes

Ports & interfaces
WAN connection: Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports: 4

Antenna
Antenna type: Internal
Antennas quantity: 2
Antenna gain level (max): 4 dBi
Antenna features: Integrated antenna

Logistics data
Harmonized System (HS) code: 85176990

Sustainability
Sustainability compliance: Yes
