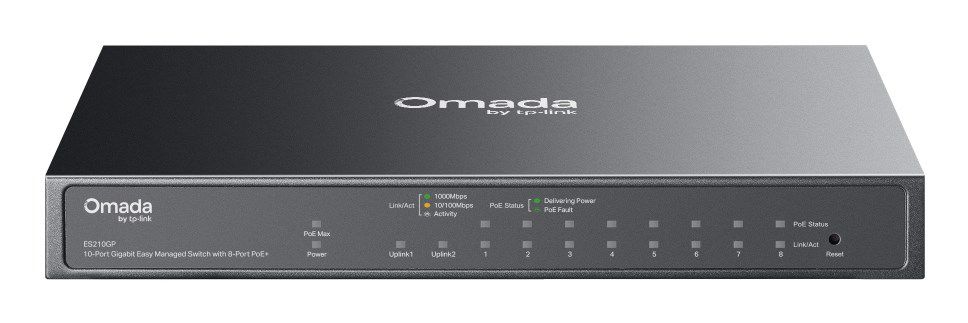

TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) DIN rail Black

Design
Rack mounting: Yes
LED indicators: Yes
Form factor: DIN rail
Product colour: Black

Power
Power source: DC
DC input voltage: 53 V
Input current: 1.31 A

Security
IGMP snooping: Yes
DHCP features: DHCP client
Loop protection: Yes

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C

Management features
Switch layer: L2
Cloud-managed: Yes
Switch type: Managed
Web-based management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 209 mm
Height: 26 mm
Depth: 126 mm

Network
Broadcast storm control: Yes
VLAN support: Yes
Auto-negotiation: Yes
Port mirroring: Yes
Link aggregation: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Auto MDI/MDI-X: Yes
Flow control support: Yes
10G support: No
Number of VLANs: 4000
Networking standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt
Ethernet LAN data rates: 10,100,1000 Mbit/s

Packaging content
Cables included: Power
Quick start guide: Yes

Certificates
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Ports & interfaces
Combo SFP ports quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Store-and-forward: Yes
Forwarding rate: 14.88 Mpps
Switching capacity: 20 Gbit/s
Packet buffer memory: 0.5 MB
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 15000

Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 63 W
Power over Ethernet (PoE): Yes

Multicast features
Multicast support: Yes

Optical fiber
Transmission distance (max): 0.25 km
