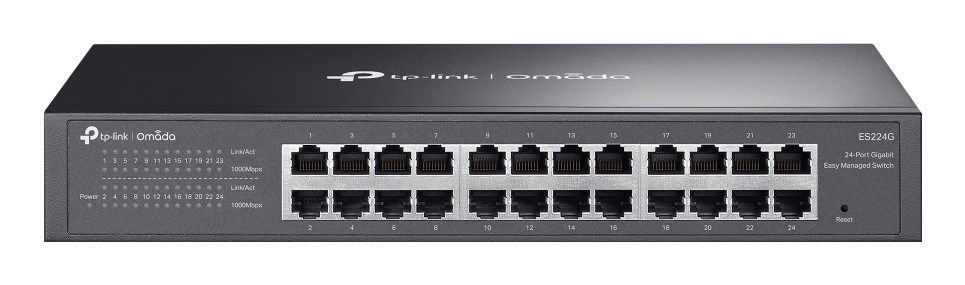

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10 /100 /1000) Black

Design
Rack mounting: Yes
Product colour: Black

Power
Surge protection voltage: 6 kV
Surge protection: Yes
Power source: AC
Power supply included: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V

Security
IGMP snooping: Yes
DHCP features: DHCP client
Queue scheduling algorithms: Weighted Round Robin (WRR)

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C

Management features
Unified static configuration: Yes
Switch layer: L2
Web-based management: Yes
Quality of Service (QoS) support: Yes
Cloud-managed: Yes
Switch type: Managed

Weight & dimensions
Depth: 140 mm
Height: 44 mm
Width: 294 mm

Network
Fast leave: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, MTU VLAN
Link aggregation: Yes
Auto-negotiation: Yes
Number of VLANs: 32
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Broadcast storm control: Yes
Flow control support: Yes

Performance
Fanless: Yes
Firmware upgradeable: Yes

Packaging content
Cables included: AC
Rack mount kit: No
User guide: Yes

Certificates
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports quantity: 24

Data transmission
Store-and-forward: Yes
Jumbo frames support: Yes
Forwarding rate: 35.7 Mpps
MAC address table: 8000 entries
Jumbo frames: 15000
Packet buffer memory: 4 MB
Switching capacity: 48 Gbit/s

Multicast features
Multicast support: Yes
