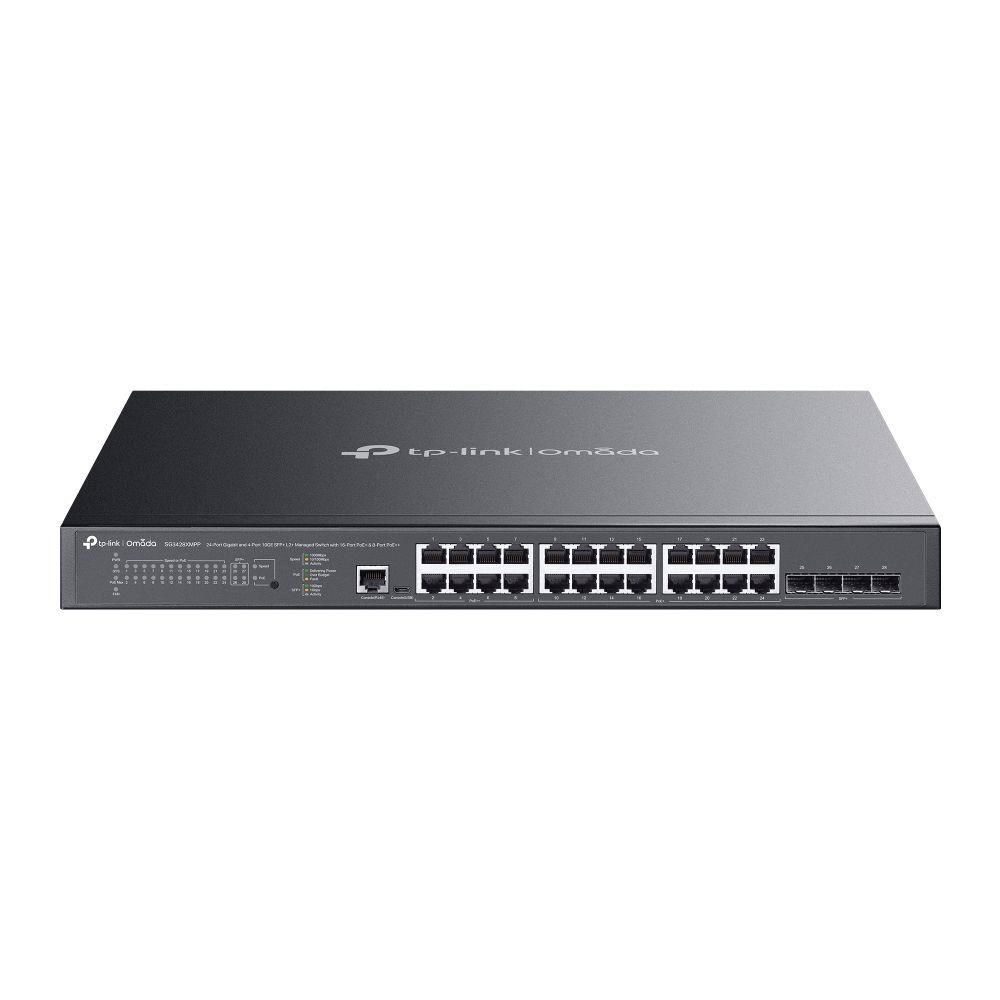

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) 1U Black

Design
LED indicators: Yes
Form factor: 1U
Reset button: Yes
Product colour: Black
Rack mounting: Yes
Number of fans: 3 fan(s)

Power
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 486.2 W
Power supply included: Yes

Security
IGMP snooping: Yes
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
Access Control List (ACL): Yes
Static port security: Yes
SSH/SSL support: Yes
Authentication: Auto VLAN, Guest VLAN
MAC address filtering: Yes
DHCP features: DHCP server, DHCP client, DHCP relay

Operational conditions
Heat dissipation: 1658.78 BTU/h
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Switch layer: L2+
System event log: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
Switch type: Managed
Web-based management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Depth: 330 mm
Height: 44 mm
Width: 440 mm

Network
Rate limiting: Yes
Port mirroring: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Broadcast storm control: Yes
Head-of-line (HOL) blocking: Yes
Flow control support: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
VLAN support: Yes
10G support: Yes

Packaging content
Cables included: AC
Quick start guide: Yes

Ports & interfaces
Console port: RJ-45/micro-USB
SFP+ module slots quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 24

Data transmission
Forwarding rate: 95.23 Mpps
Store-and-forward: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB
Switching capacity: 128 Gbit/s
MAC address table: 16000 entries
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE): Yes
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 500 W

Multicast features
Multicast support: Yes

Safety warning
Warnings: The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself.
