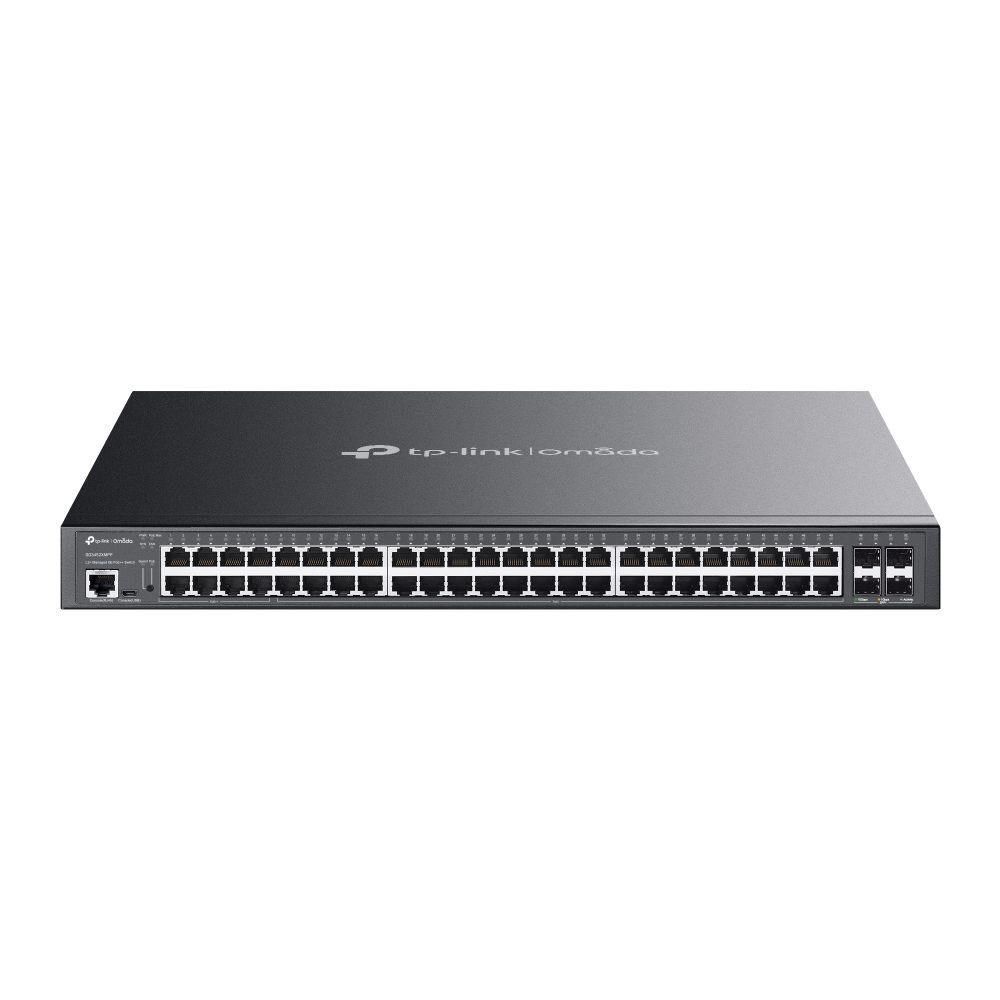

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) 1U Black

Design
Reset button: Yes
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Number of fans: 3 fan(s)
LED indicators: Yes

Power
Power supply included: Yes
Power source: AC
AC input frequency: 50/60 Hz
Power consumption (max): 635.7 W
AC input voltage: 100 - 240 V

Security
Access Control List (ACL): Yes
Static port security: Yes
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
Authentication: Auto VLAN, Guest VLAN
SSH/SSL support: Yes
DHCP features: DHCP server, DHCP client, DHCP relay
MAC address filtering: Yes
IGMP snooping: Yes

Operational conditions
Heat dissipation: 2169.2 BTU/h
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Management features
ARP inspection: Yes
Switch layer: L2+
Configuring Location Settings (CLI): Yes
System event log: Yes
Cloud-managed: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes

Weight & dimensions
Height: 44 mm
Depth: 330 mm
Width: 440 mm

Network
Spanning tree protocol: Yes
Port mirroring: Yes
Link aggregation: Yes
Rate limiting: Yes
Head-of-line (HOL) blocking: Yes
Broadcast storm control: Yes
Flow control support: Yes
VLAN support: Yes
Networking standards: IEEE 802.3at, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af
10G support: Yes

Packaging content
Cables included: AC
Quick start guide: Yes

Ports & interfaces
SFP+ module slots quantity: 4
Console port: RJ-45/micro-USB
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 48

Data transmission
Store-and-forward: Yes
Jumbo frames: 9000
Forwarding rate: 130.9 Mpps
Jumbo frames support: Yes
Switching capacity: 176 Gbit/s
Packet buffer memory: 12 MB
MAC address table: 16000 entries

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 40
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 750 W

Multicast features
Multicast support: Yes

Safety warning
Warnings: Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
