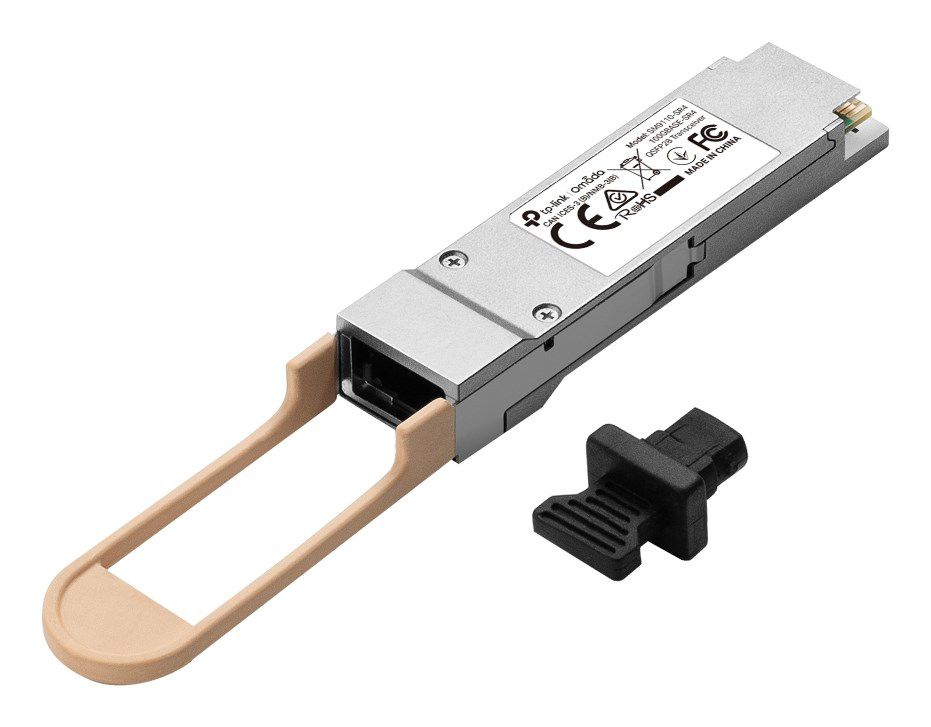

TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit /s QSFP28 850 nm

Features
Plug and Play: Yes
Form factor: QSFP28
Hot-swap: Yes
Product colour: Metallic

Power
Input voltage: 3.3 V

Operational conditions
Storage relative humidity (H-H): 0 - 85%
Operating temperature (T-T): 0 - 70 °C
Maximum operating temperature: 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions
Width: 124 mm
Height: 11.7 mm
Depth: 18.4 mm

Performance
Networking standards: IEEE 802.3bm, IEEE 802.3ba
Digital Diagnostics Monitoring (DDM): Yes
Maximum data transfer rate: 100000 Mbit/s
Wavelength: 850 nm
Tx power (max): 2.4 dBmW
SFP transceiver type: Fiber optic
Interface type: QSFP28
Fiber optic connector: MPO-12, MTP
Maximum transfer distance: 150 m
SFP transceiver standard: SR4
Single-mode fiber (SMF) supported: No
Fiber ethernet cabling technology: 40GBASE, 100GBASE
Tx power (min): -8.4 dBmW
Ethernet interface type: 100 Gigabit Ethernet, 40 Gigabit Ethernet
Multi-mode fiber (MMF) supported: Yes
Fiber cable diameters supported (core/cladding): 50/125 µm

Packaging data
User guide: Yes

Packaging content
Quantity per pack: 1 pc(s)
Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP

Certificates
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Logistics data
Country of origin: China
