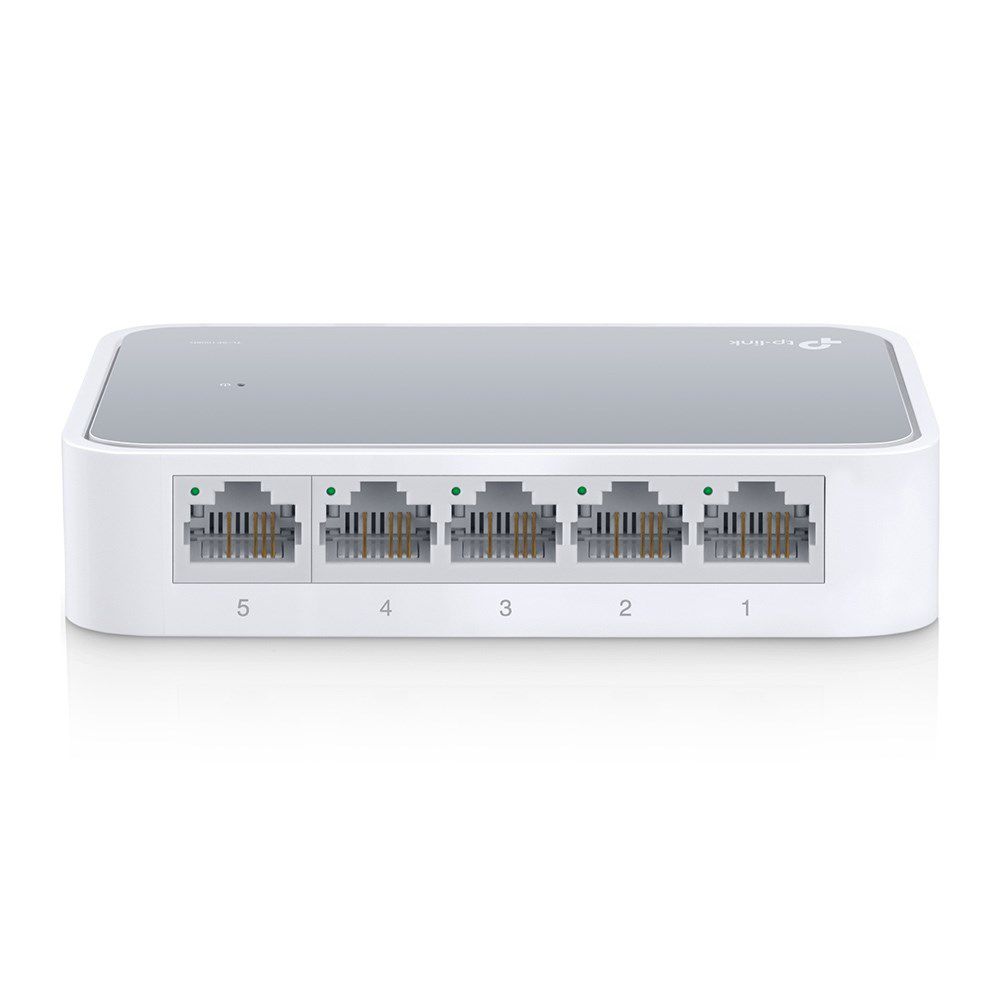

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

Certification: FCC, RoHs

Design
LED indicators: Yes
Product colour: White
Rack mounting: No

Power
AC input frequency: 50 Hz
Input current: 0.6 A
AC input voltage: 220 V
DC input voltage: 5 V
Power consumption (typical): 1.87 W
Power supply included: No
Power source: DC
Power consumption (max): 1.87 W

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 6.38 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Management features
Web-based management: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes

Weight & dimensions
Depth: 70 mm
Width: 103.5 mm
Height: 22 mm

Network
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.3x, IEEE 802.3u
Spanning tree protocol: Yes
Full duplex: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Auto-negotiation: Yes
Auto MDI/MDI-X: Yes
10G support: No
Flow control support: Yes

Performance
Fanless: Yes

Packaging data
Package weight: 190 g
Package type: Box
AC adapter included: Yes
Cables included: AC
User guide: Yes
Package height: 85 mm
Package depth: 108 mm
Package width: 91 mm

Protocols
Supported network protocols: CSMA/CD, TCP/IP

Ports & interfaces
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5
Basic switching RJ-45 Ethernet ports quantity: 5

Data transmission
Store-and-forward: Yes
Switching capacity: 1.6 Gbit/s
MAC address table: 1000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Sustainability
Sustainability compliance: Yes
Sustainability certificates: CE, RoHS, Federal Communications Commission (FCC)
