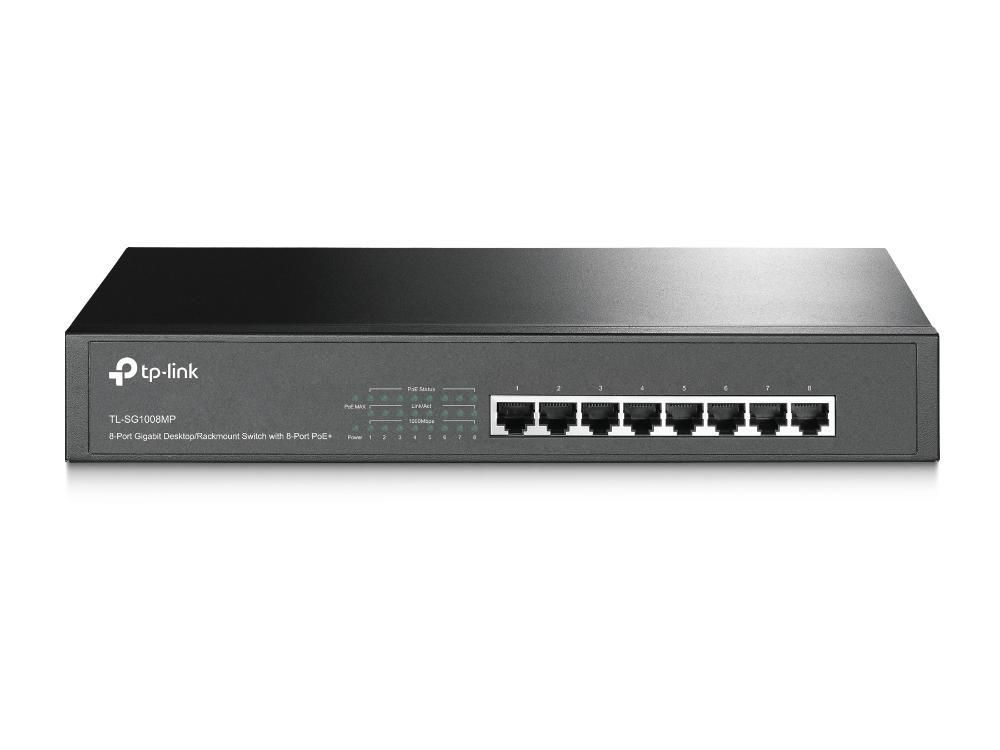

TP-Link TL-SG1008MP Unmanaged Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) 1U Black

Design
LED indicators: Yes
Product colour: Black
Stackable: No
Form factor: 1U
Housing material: Metal
Rack mounting: Yes
Number of fans: 1 fan(s)

Power
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 173.65 W
Power source: AC/PoE
Power supply included: Yes

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 592.15 BTU/h

Management features
Switch type: Unmanaged

Weight & dimensions
Depth: 180 mm
Height: 44 mm
Width: 294 mm

Network
Half duplex: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u
Cable types supported: Cat5, Cat5e, Cat4, Cat3
MAC address auto-aging supported: Yes
Full duplex: Yes
10G support: No
Flow control support: Yes
Auto-negotiation: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
MAC address auto-learning supported: Yes
Auto MDI/MDI-X: Yes

Performance
Maximum cable length: 100 m

Packaging data
Package type: Box
Package weight: 2.11 kg
Package width: 250 mm
Package depth: 400 mm
Package height: 80 mm

Packaging content
User guide: Yes
Cables included: AC
Rack mount kit: Yes

Certificates
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Forwarding rate: 11.904 Mpps
Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Packet buffer memory: 1.5 MB
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 16000

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 153 W

Sustainability
Sustainability compliance: Yes
