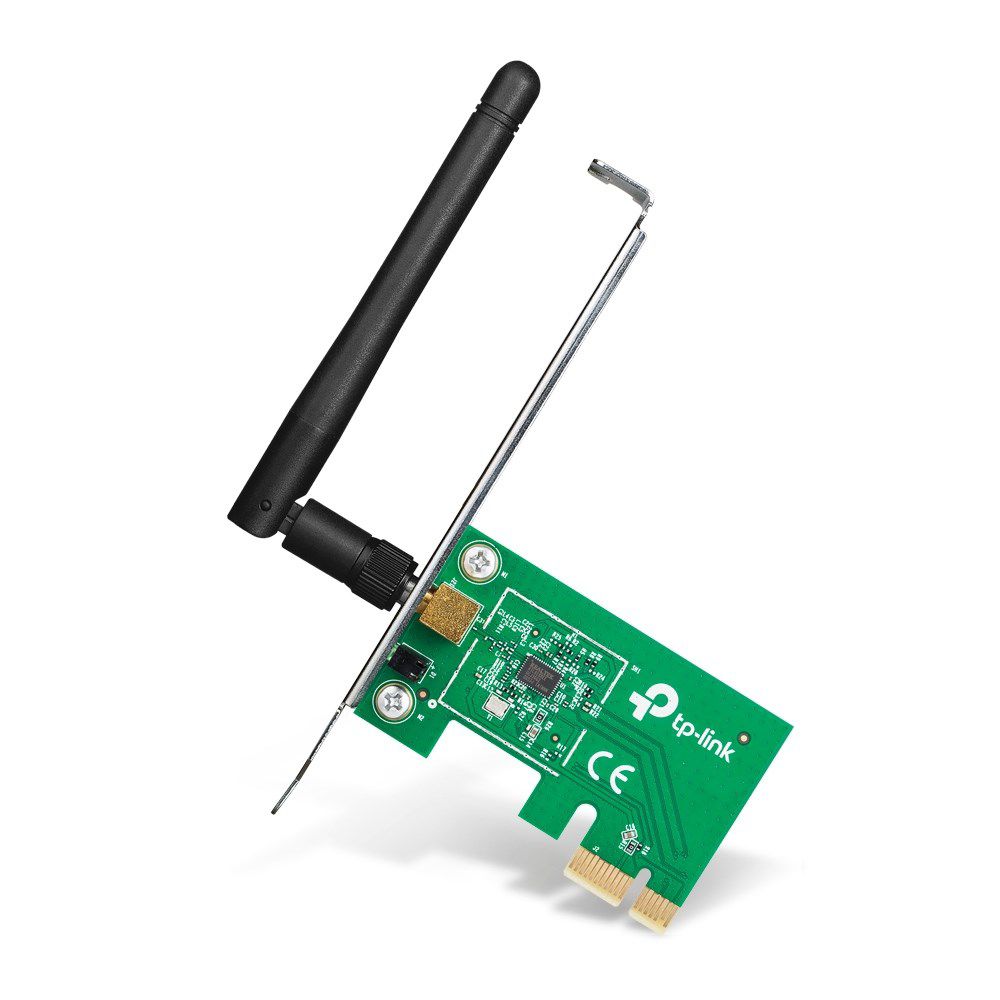

TP-Link TL-WN781ND network card Internal WLAN 150 Mbit /s

Technical details
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Design
Operating modes: Infrastructure mode
Antenna: Yes
Internal: Yes
Antenna gain level (max): 2 dBi
Product colour: Green
Antenna direction type: Omni-directional
Chipset: Atheros
Antenna design: External

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Width: 120.8 mm
Depth: 78.5 mm
Height: 21.5 mm

Network
Wi-Fi: Yes
Modulation: DBPSK, DQPSK, 64-QAM, CCK, 16-QAM, OFDM
WLAN data transfer rates supported: 150 Mbit/s, 11, 54
Wi-Fi standards: 802.11b, 802.11g
Wi-Fi band: Single-band (2.4 GHz)
Security algorithms: WPA-PSK, WPA2-PSK, 64-bit WEP, 128-bit WEP
Frequency range: 2.4 - 2.4835 GHz
Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Maximum data transfer rate: 150 Mbit/s

System requirements
Linux operating systems supported: Yes
Windows operating systems supported: Windows 7 Home Basic, Windows 7 Ultimate, Windows Vista Enterprise x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows 8.1, Windows Vista Ultimate, Windows 7 Ultimate x64, Windows Vista, Windows 7 x64, Windows Vista Home Premium, Windows XP Home, Windows 10 Home, Windows 7 Starter x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows Vista x64, Windows Vista Home Premium x64, Windows 10 Education x64, Windows XP Home x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows XP Professional x64, Windows 10, Windows Vista Ultimate x64, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows Vista Home Basic x64, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 7, Windows 10 Pro x64, Windows 8 Enterprise, Windows 10 Enterprise x64, Windows 10 x64, Windows 8 Pro x64, Windows 8.1 Pro, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows Vista Home Basic, Windows 10 Home x64, Windows 8, Windows 8 x64, Windows Vista Business x64, Windows 10 Education, Windows XP Professional, Windows XP

Packaging data
Package height: 39 mm
Package width: 200 mm
Package weight: 150 g
Package depth: 150 mm

Packaging content
Quick installation guide: Yes
Resource CD: Yes

Ports & interfaces
Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN

Logistics data
Harmonized System (HS) code: 85176990

Sustainability
Sustainability compliance: Yes
