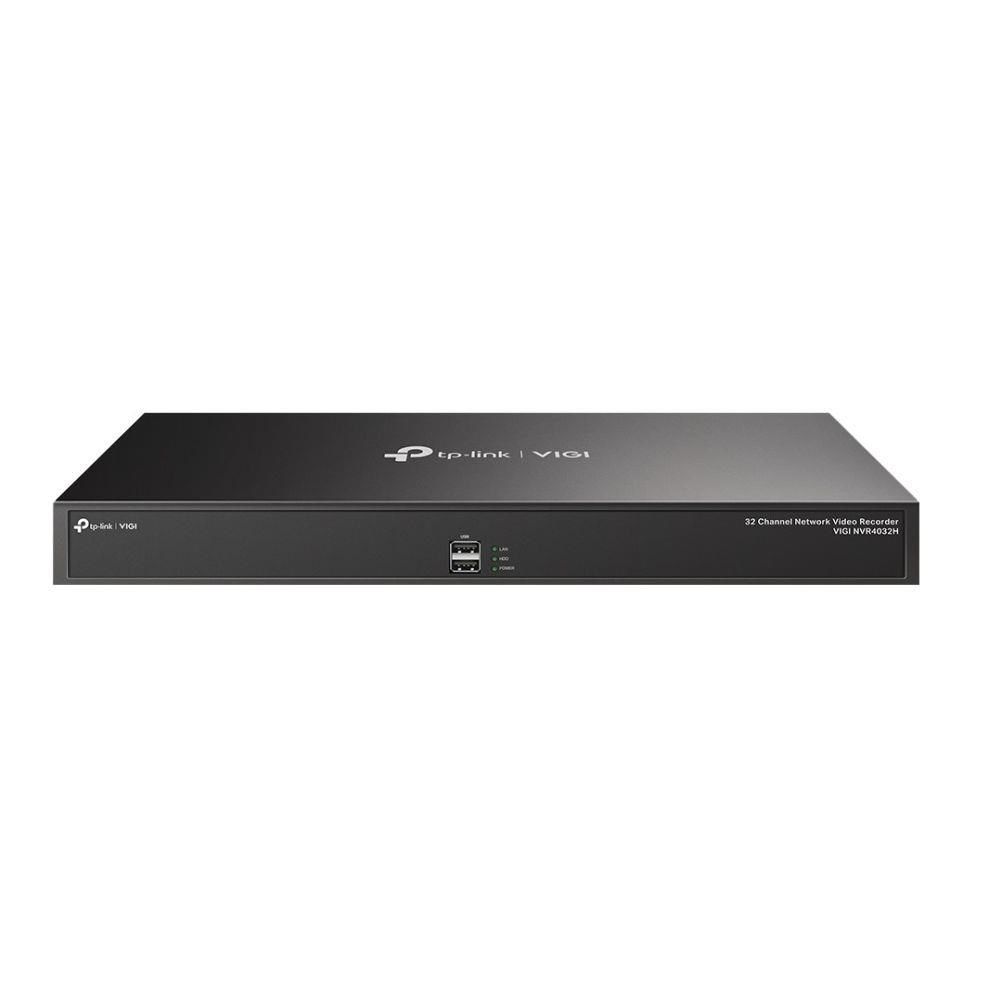

TP-Link VIGI 32 Channel Network Video Recorder

Features
Buzzer off: Yes
Rack mounting: Yes
Product colour: Black

Power
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 48 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 55 °C

Weight & dimensions
Width: 440 mm
Package depth: 528 mm
Package weight: 5.22 kg
Package width: 440 mm
Height: 44 mm
Weight: 4 kg
Package height: 100 mm
Depth: 330 mm

System requirements
Mobile operating systems supported: Android, iOS
Browser supported: Chrome (57+), Firefox (52+), Edge (91+)
Supported resolutions: 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768

Performance
Output bandwidth: 320 Mbit/s
Number of simultaneously playbacked channels: 16 channels
Alarm input channels: 16
Recording modes: Manual, Schedule
Video motion detection: Yes
Backup function: Yes
Video formats supported: H.264+, H.265, H.265+, H.264
Video input channels: 32 channels
Audio system: 2-way
Input bandwidth: 320 Mbit/s
Maximum resolution: 3840 x 2160 pixels
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Video recording modes: 1080p, 720p
Alarm output channels: 4
Video loss detection: Yes

Packaging content
Quick installation guide: Yes
Cables included: AC, Power

Ports & interfaces
Ethernet LAN data rates: 10, 1000 Mbit/s, 100
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Line-in: Yes
RS-232 ports: 1
USB 2.0 ports quantity: 2
VGA (D-Sub) output ports: 1
Supported network protocols: UPnP, NTP, ONVIF, CGI
Audio output: 1

Hard drive
Maximum storage capacity: 10 TB
Number of HDDs supported: 4
HDD interface: SATA
HDD capacity: 0 GB
