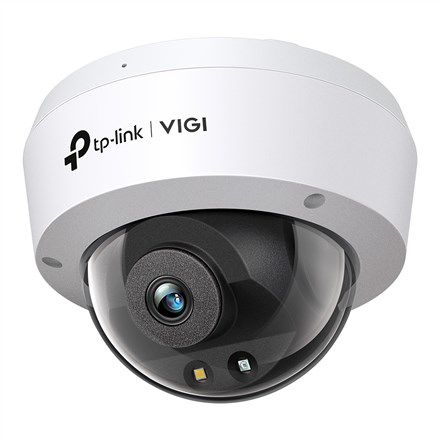

TP-Link VIGI 4MP Full-Color Dome Network Camera

Features
Basic event: Motion Detection, Camera Tampering Detection, Exception

Design
International Protection (IP) code: IP67
Housing material: Plastic
IK code: IK10
Form factor: Dome
Product colour: White, Black
Mounting type: Ceiling/wall

Power
Power source type: DC, PoE
Power consumption (max): 5.4 W

Security
Intelligent Video Surveillance (IVS) system features: Region exiting detection, Crossing line, Vehicle detection, Region entrance detection, Intrusion, Abandoned object, Human detection
Mirror: Yes
Video motion detection: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Active tampering alarm: Yes
Password protection: Yes
Digest authentication: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Reset button: Yes
Management software: VIGI App, VIGI Security Manager, VIGI NVR

Weight & dimensions
Height: 86 mm
Width: 115 mm
Depth: 115 mm

Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels: 3 channels
Bluetooth: No
Wi-Fi: No
Certification: CE, BSMI, VCCI, ONVIF

Performance
Day/night mode: Yes
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired

Packaging data
Package weight: 470 g
Package width: 153 mm
Package height: 120 mm
Package depth: 193 mm

Packaging content
Number of cameras: 1
Mounting kit: Yes

Audio
Built-in microphone: Yes

Storage
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Maximum memory card size: 256 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Pan range: 0 - 360°
Tilt angle range: 0 - 85°
Camera tilt control: Yes
Angle of rotation: 360°
Lens viewing angle, vertical: 42.9°
Camera pan control: Yes
Minimum illumination: 0.005 lx
Lens viewing angle, horizontal: 79.7°
Lens viewing angle, diagonal: 93.9°

Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Image quality adjustment: Contrast, Mirror, Sharpness, Brightness, Saturation
Supported graphics resolutions: 640 x 480 (VGA), 2048 x 1280, 320 x 240, 1920 x 1080 (HD 1080), 352 x 288, 2304 x 1296, 2560 x 1440, 1280 x 720 (HD 720)
Video streaming: Yes
Privacy masking: Yes
Video compression formats: H.265+, H.265, H.264+, H.264
Total megapixels: 4 MP
Digital Wide Dynamic Range (DWDR): Yes
Frame rate: 30 fps
Maximum resolution: 2560 x 1440 pixels
Back Light Compensation (BLC): Yes
Noise reduction technology: 3D noise reduction
Bit rate: 64 Kbps - 4 Mbps
Highlight Compensation (HLC): Yes

Night vision
LED type: IR
Infra-red wavelength: 850 nm
Night vision distance: 30 m
Number of illumination LEDs: 1
Night vision: Yes

Lens system
Lens diameter: 4 mm
Number of lenses: 1

Sustainability
Compliance certificates: CE
