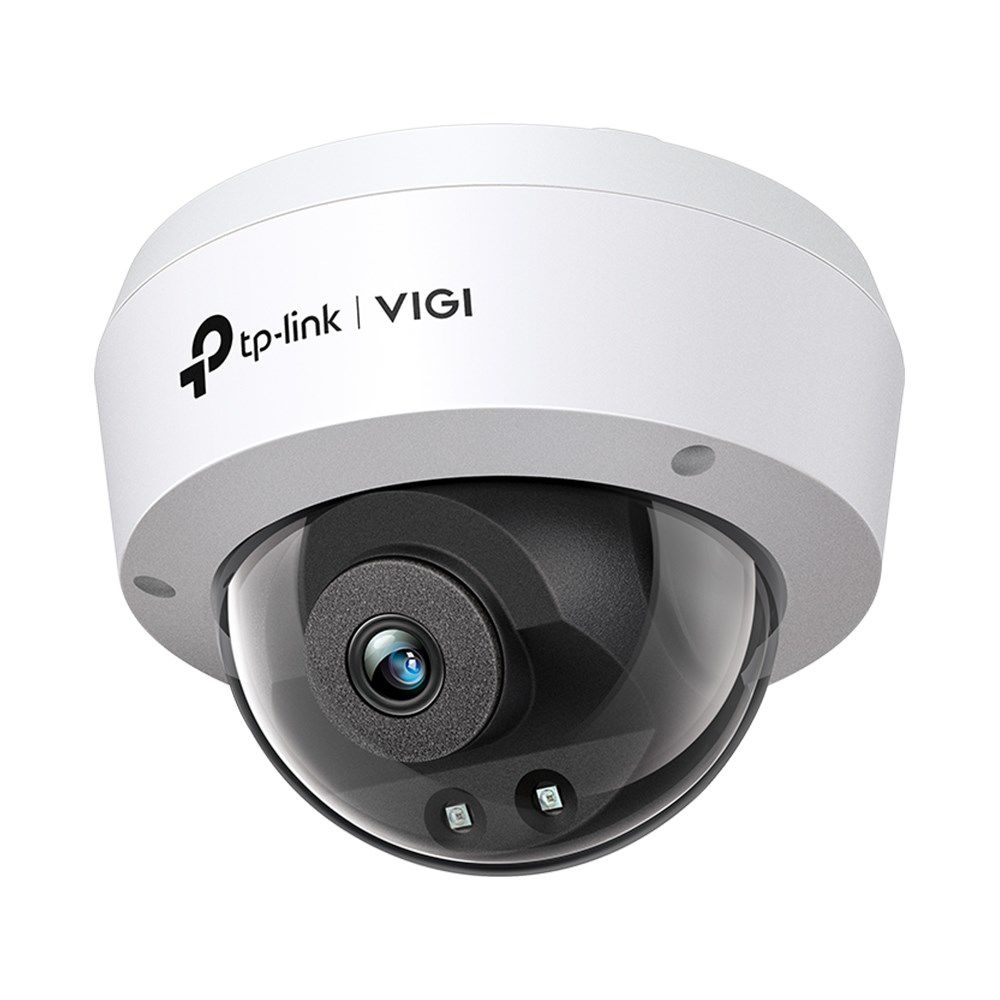

TP-Link VIGI 4MP IR Dome Network Camera

Features
Basic event: Motion Detection, Camera Tampering Detection, Exception

Design
Product colour: Black, White
International Protection (IP) code: IP67
IK code: IK10
Housing material: Plastic
Form factor: Dome
Mounting type: Ceiling/wall

Power
Power source type: PoE
Power consumption (max): 5 W

Security
Intelligent Video Surveillance (IVS) system features: Human detection, Crossing line, Vehicle detection, Region entrance detection, Region exiting detection, Intrusion, Abandoned object
HTTPS encryption: Yes
IP address filtering: Yes
Mirror: Yes
Video motion detection: Yes
Password protection: Yes
Digest authentication: Yes
Active tampering alarm: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Management features
Web-based management: Yes
Management software: VIGI App, VIGI Security Manager, VIGI NVR

Weight & dimensions
Width: 115 mm
Depth: 115 mm
Height: 86 mm

Network
Bluetooth: No
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels: 3 channels
Certification: CE, BSMI, VCCI, ONVIF

Performance
Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor

Packaging data
Package depth: 193 mm
Package width: 153 mm
Package weight: 460 g
Package height: 120 mm

Packaging content
Number of cameras: 1
Mounting kit: Yes

Storage
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Minimum illumination: 0 lx
Lens viewing angle, vertical: 48.9°
Lens viewing angle, diagonal: 106.5°
Lens viewing angle, horizontal: 88.8°

Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Video
Highlight Compensation (HLC): Yes
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2304 x 1296, 1280 x 720 (HD 720), 320 x 240, 352 x 288, 2048 x 1280
Back Light Compensation (BLC): Yes
Bit rate: 64 Kbps - 4 Mbps
Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Image quality adjustment: Saturation, Sharpness, Contrast, Mirror, Brightness
Frame rate: 30 fps
Video compression formats: H.265+, H.264, H.264+, H.265
Privacy masking: Yes
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Digital Wide Dynamic Range (DWDR): Yes

Night vision
LED type: IR
Night vision distance: 30 m
Number of illumination LEDs: 1
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Number of lenses: 1
Lens diameter: 2.8 mm

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.

Sustainability
Compliance certificates: CE
