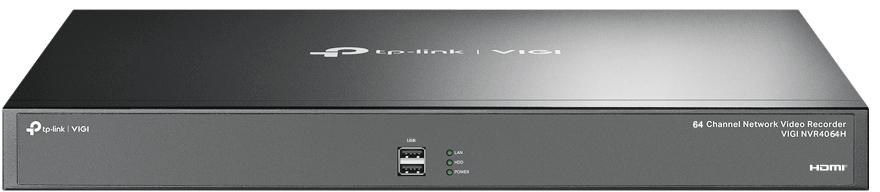

TP-Link VIGI 64 Channel Network Video Recorder

Technical details
Compliance certificates: CE, UKCA, BSMI, KC, VCCI, Federal Communications Commission (FCC)

Features
Reset button: Yes
Rack mounting: Yes
Product colour: Black
Buzzer off: Yes

Power
Power consumption (max): 48.38 W
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Output current: 1.5 A

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 10 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 55 °C

Weight & dimensions
Depth: 330 mm
Package depth: 528 mm
Package width: 440 mm
Width: 440 mm
Weight: 4 kg
Package weight: 5 kg
Package height: 100 mm
Height: 44 mm

System requirements
Browser supported: Chrome (57+), Firefox (52+), Edge (91+)
Mobile operating systems supported: Android, iOS
Supported resolutions: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Performance
Audio formats supported: G.726, G.711 A-law, G.711 μ-law
Video motion detection: Yes
Video formats supported: H.264, H.265, H.265+, H.264+
Video loss detection: Yes
Audio system: 2-way
Maximum resolution: 3840 x 2160 pixels
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Video input channels: 64 channels
Backup function: Yes
Alarm input channels: 16
Input bandwidth: 320 Mbit/s
Number of simultaneously playbacked channels: 16 channels
Recording modes: Manual, Schedule
Video recording modes: 1080p, 720p
Output bandwidth: 320 Mbit/s
Alarm output channels: 4

Ports & interfaces
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
eSATA ports quantity: 1
eSATA: Yes
Ethernet LAN data rates: 100, 10, 1000 Mbit/s
RS-232 ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) output ports: 1
Audio RCA outputs: 1
HDMI ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
Audio RCA inputs: 1

Hard drive
Maximum storage capacity: 64 TB
Number of HDDs supported: 4
HDD interface: SATA
HDD capacity: 0 GB
