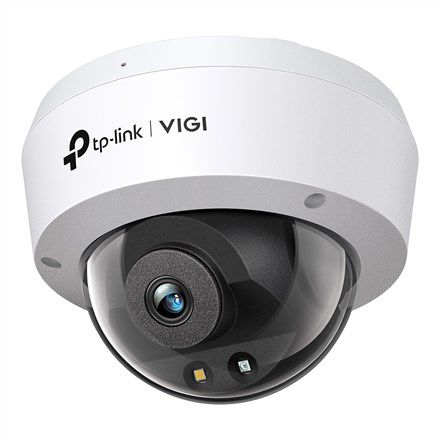

TP-LINK VIGI C230(2.8mm) Camera

Design
Mounting type: Ceiling
Housing material: Plastic
Form factor: Dome
IK code: IK10
Product colour: White
International Protection (IP) code: IP67

Power
Power source type: DC
Power consumption (max): 4.7 W
DC output voltage: 12

Security
Password reset via email: Yes
Video motion detection: Yes
Mirror: Yes
Password protection: Yes
Active tampering alarm: Yes
HTTPS encryption: Yes
IP address filtering: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Weight & dimensions
Height: 115 mm
Width: 115 mm
Depth: 86 mm

Network
Bluetooth: No
Wi-Fi: No
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet interface type: Fast Ethernet

Performance
Placement supported: Indoor & outdoor
Type: IP security camera
Connectivity technology: Wired
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes

Storage
Built-in HDD: No

Camera
Lens viewing angle, diagonal: 128.7°
Lens viewing angle, horizontal: 107.5°
Lens viewing angle, vertical: 57.2°
Camera pan control: Yes
Camera tilt control: Yes
Tilt angle range: 0 - 85°
Minimum illumination: 0 lx
Pan range: 0 - 360°
Angle of rotation: 360°

Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Video
Privacy masking: Yes
Image quality adjustment: Saturation, Contrast, Mirror, Sharpness, Brightness
Video streaming: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 2048 x 1280, 320 x 240, 704 x 576, 352 x 288, 1920 x 1080 (HD 1080), 2304 x 1296
Video compression formats: H.265+, H.264+, H.264, H.265
Maximum resolution: 2304 x 1296 pixels
Back Light Compensation (BLC): Yes
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Noise reduction technology: 3D noise reduction
Total megapixels: 3 MP

Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR
Number of illumination LEDs: 1
Night vision distance: 30 m

Lens system
Fixed focal length: 2.8 mm
