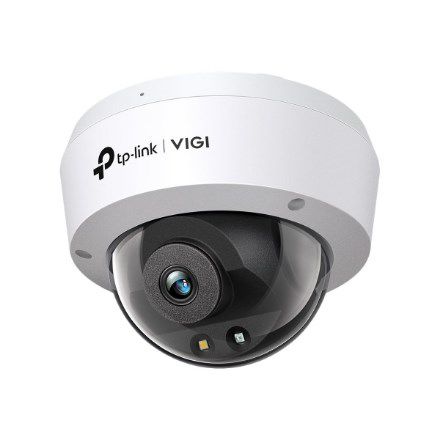

TP-Link VIGI C230 Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling

Features
Basic event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Design
Housing material: Plastic
IK code: IK10
Form factor: Dome
International Protection (IP) code: IP67
Protection features: Waterproof
Mounting type: Ceiling
Product colour: White

Power
DC output voltage: 12
Power source type: DC, PoE

Security
Mirror: Yes
Password protection: Yes
Password reset via email: Yes
Digest authentication: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Weight & dimensions
Depth: 86 mm
Height: 115 mm
Width: 115 mm

Network
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Networking standards: IEEE 802.3at, IEEE 802.3af
Certification: CE/BSMI/VCCI/ONVIF

Performance
Day/night mode: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor & outdoor
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Storage
Built-in HDD: No

Camera
Minimum illumination: 0.005 lx
Camera pan control: Yes
Pan range: 0 - 360°
Lens viewing angle, diagonal: 106.9°
Lens viewing angle, horizontal: 89.1°
Lens viewing angle, vertical: 45.1°

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Number of sensors: 1

Video
Privacy masking: Yes
Bit rate: 64 Kbps to 4 Mbps
Back Light Compensation (BLC): Yes
Video compression formats: H.264+, H.265, H.265+, H.264
Total megapixels: 3 MP
Noise reduction technology: 3D noise reduction
Image quality adjustment: Saturation, Contrast, Mirror, Brightness
Smart IR: Yes
Noise reduction: Yes
Video streaming: Yes
Highlight Compensation (HLC): Yes
Maximum resolution: 2304 x 1296 pixels

Night vision
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR
B/W night vision distance: 30 m

Lens system
Maximum aperture number: 1.6
Lens diameter: 4 mm
Number of lenses: 1

Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
