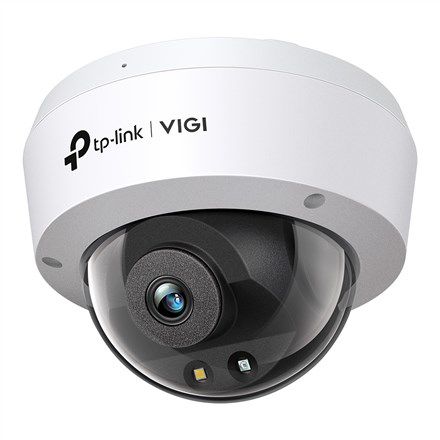

TP-LINK VIGI C240(2.8mm) Camera

Features
Basic event: Motion Detection, Camera Tampering Detection, Exception

Design
International Protection (IP) code: IP67
Housing material: Plastic
IK code: IK10
Form factor: Dome
Product colour: White, Black
Mounting type: Ceiling/wall

Power
Power consumption (max): 5.4 W
Power source type: DC, PoE

Security
Digest authentication: Yes
Intelligent Video Surveillance (IVS) system features: Region exiting detection, Human detection, Abandoned object, Crossing line, Vehicle detection, Intrusion, Region entrance detection
Password protection: Yes
Mirror: Yes
HTTPS encryption: Yes
Video motion detection: Yes
IP address filtering: Yes
Active tampering alarm: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Management features
Reset button: Yes
Web-based management: Yes
Management software: VIGI App, VIGI Security Manager, VIGI NVR

Weight & dimensions
Depth: 115 mm
Width: 115 mm
Height: 86 mm

Network
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Bluetooth: No
Number of simultaneous live view channels: 3 channels
Certification: CE, BSMI, VCCI, ONVIF

Performance
Type: IP security camera
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Day/night mode: Yes

Packaging data
Package height: 120 mm
Package weight: 460 g
Package width: 153 mm
Package depth: 193 mm

Packaging content
Mounting kit: Yes
Number of cameras: 1

Audio
Built-in microphone: Yes

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Pan range: 0 - 360°
Minimum illumination: 0.005 lx
Angle of rotation: 360°
Tilt angle range: 0 - 85°
Lens viewing angle, vertical: 51.7°
Lens viewing angle, horizontal: 95.7°
Lens viewing angle, diagonal: 113°
Camera pan control: Yes
Camera tilt control: Yes

Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Back Light Compensation (BLC): Yes
Supported graphics resolutions: 2048 x 1280, 2304 x 1296, 1920 x 1080 (HD 1080), 352 x 288, 2560 x 1440, 640 x 480 (VGA), 320 x 240, 1280 x 720 (HD 720)
Digital Wide Dynamic Range (DWDR): Yes
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Bit rate: 64 Kbps - 4 Mbps
Maximum resolution: 2560 x 1440 pixels
Image quality adjustment: Brightness, Sharpness, Saturation, Contrast, Mirror
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Privacy masking: Yes
Video compression formats: H.264, H.265, H.264+, H.265+
Frame rate: 30 fps

Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 1
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Number of lenses: 1
Lens diameter: 2.8 mm

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.

Sustainability
Compliance certificates: CE
