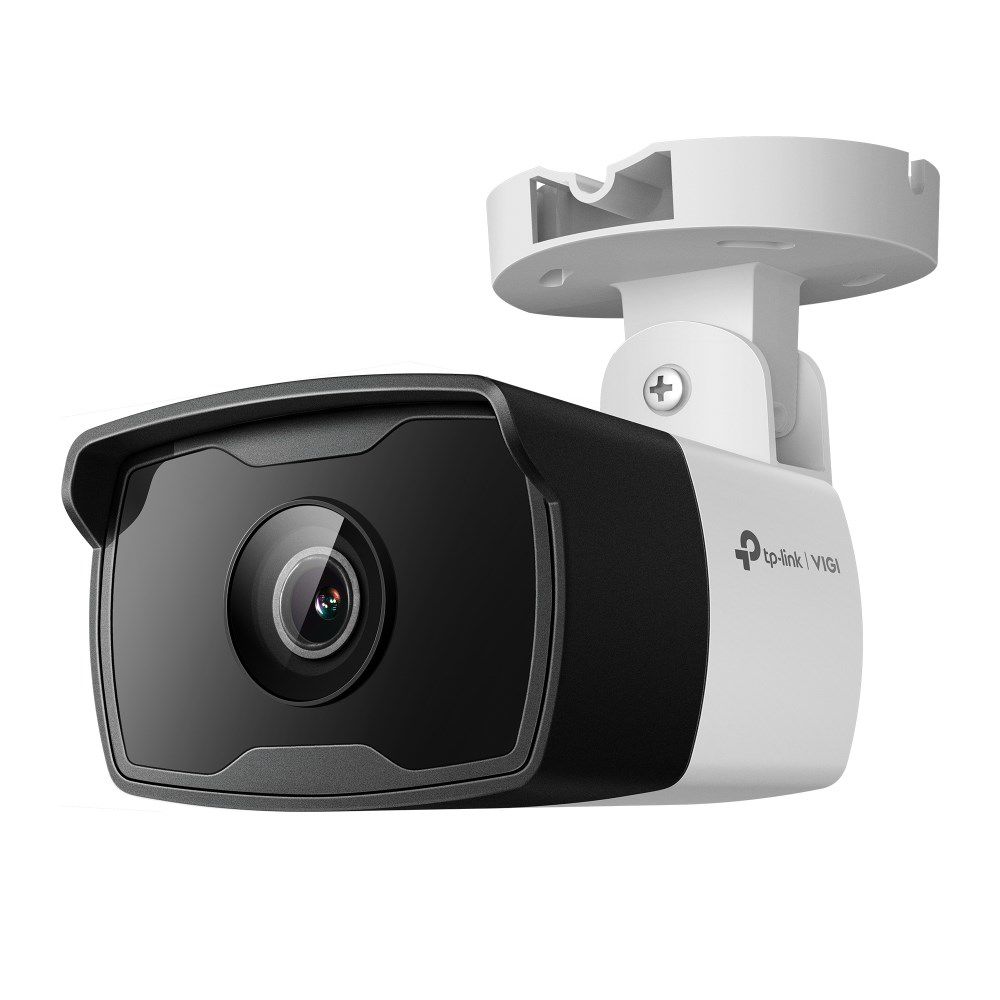

TP-Link VIGI C340I 2.8MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling /Wall /Pole

Design
International Protection (IP) code: IP67
Housing material: Plastic
Form factor: Bullet
Mounting type: Ceiling/Wall/Pole
Product colour: White, Black

Power
Power consumption (typical): 1.32 W
Power consumption (max): 5 W
DC output voltage: 12
Power source type: DC, PoE

Security
Password protection: Yes
Intelligent Video Surveillance (IVS) system features: Region exiting detection, Crossing line, Vehicle detection, Region entrance detection
Digest authentication: Yes
Video motion detection: Yes
Password reset via email: Yes
IP address filtering: Yes
Human and vehicle targets classification: Yes
Mirror: Yes
HTTPS encryption: Yes
Network access storage (NAS): Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Management features
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection

Weight & dimensions
Length: 174 mm
Height: 71 mm
Width: 73 mm
Weight: 200 g

Network
Wi-Fi: No
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels: 3 channels
Bluetooth: No
Networking standards: IEEE 802.3af, IEEE 802.3at

Performance
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Type: IP security camera
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Connectivity technology: Wired

Packaging data
Package type: Box
Package weight: 360 g
Package width: 128 mm
Package height: 103 mm
Package depth: 218 mm

Packaging content
Number of cameras: 1
Mounting kit: Yes
Manual: Yes

Audio
Signal-to-Noise Ratio (SNR): 52 dB

Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, diagonal: 106.5°
Camera shutter speed: 1/3 - 1/10000 s
Lens viewing angle, horizontal: 88.8°
Pan range: -90 - 90°
Lens viewing angle, vertical: 48.9°
Minimum illumination: 0.01 lx
Number of Privacy masking areas: 4
Tilt angle range: -90 - 90°

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Video
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Highlight Compensation (HLC): Yes
Video compression formats: H.265, H.264, H.264+, H.265+
Image quality adjustment: Brightness, Sharpness, Contrast, Mirror, Saturation
Bit rate: 256 Kbps - 4 Mbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Privacy masking: Yes
Total megapixels: 4 MP
Supported video modes: 240p, 1280p, 720p, 1440p, 480p, 1080p
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Video streaming: Yes
3D positioning: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 640 x 480 (VGA), 2048 x 1280, 352 x 288, 1920 x 1080 (HD 1080), 2560 x 1440, 2304 x 1296, 320 x 240
Maximum resolution: 2560 x 1440 pixels

Night vision
Infra-red wavelength: 850 nm
LED type: IR
Number of illumination LEDs: 2
Night vision distance: 30 m
Night vision: Yes

Lens system
Identify distance: 6 m
Maximum aperture number: 2.2
Fixed focal length: 2.8 mm
Detect distance: 60 m
Number of lenses: 1
Observe distance: 25 m
Recognize distance: 12 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.

Sustainability
Sustainability compliance: Yes
Compliance certificates: EAC, CE, Federal Communications Commission (FCC), BSMI, UKCA
