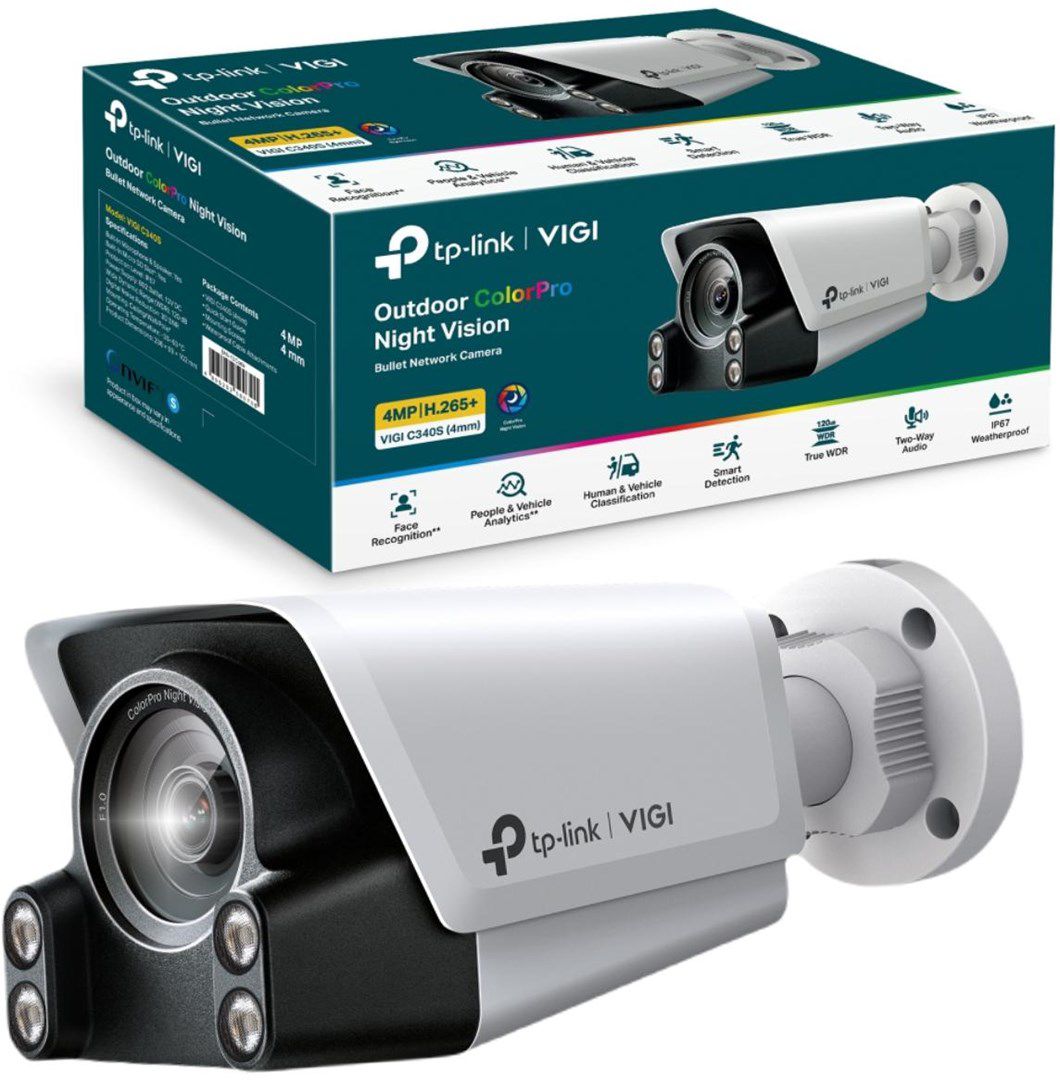

TP-Link VIGI C340S Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

Design
Form factor: Bullet
Product colour: White
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Mounting type: Wall

Power
Power consumption (max): 10.1 W
Power source type: DC
DC output voltage: 12

Security
Digest authentication: Yes
IP address filtering: Yes
Privacy protection: Yes
Password protection: Yes

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C

Weight & dimensions
Depth: 236 mm
Height: 99 mm
Width: 102 mm

Network
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet interface type: Fast Ethernet

Performance
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Connectivity technology: Wired
Dynamic range: 120 dB
Day/night mode: Yes
Luminous flux: 0.0005 lm
Placement supported: Outdoor

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Built-in speaker(s): Yes
Bit rate range: 64 - 64 Kbit/s
Sample rate: 8 kHz
Signal-to-Noise Ratio (SNR): 52 dB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Number of Privacy masking areas: 4
Tilt angle range: -90 - 90°
Minimum illumination: 0.0005 lx
Camera shutter speed: 1/10000 s
Lens viewing angle, diagonal: 114.7°
Pan range: -90 - 90°
Lens viewing angle, horizontal: 95.2°
Lens viewing angle, vertical: 50.6°

Image sensor
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")

Video
Bit rate: 4 Mbps
Maximum resolution: 2688 x 1520 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 2048 x 1280, 2550 x 1440, 2688 x 1520, 2304 x 1296, 1920 x 1080 (HD 1080)
Privacy masking: Yes
Frame rate: 60 fps
Total megapixels: 4 MP
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Video compression formats: H.264, H.264+, H.265+, H.265
Noise reduction technology: 3D noise reduction

Night vision
LED type: White
Night vision distance: 30 m
Number of illumination LEDs: 4
Night vision: Yes

Lens system
Fixed focal length: 4 mm
Minimum aperture number: 1
Focal length range: 4 mm
Identify distance: 7 m
Recognize distance: 14 m
Maximum aperture number: 1
Observe distance: 29 m
Number of lenses: 1
Detect distance: 70 m
