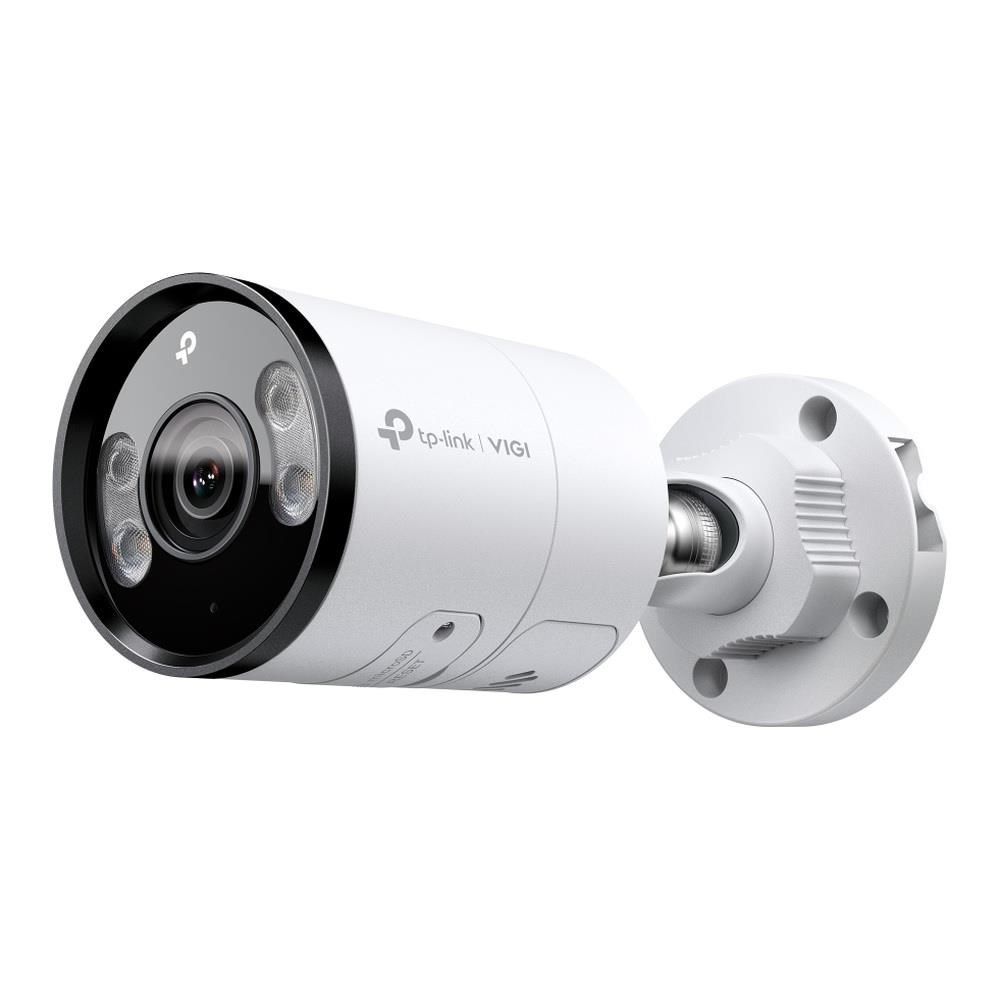

TP-Link VIGI C345 Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

Design
Mounting type: Wall
Form factor: Bullet
International Protection (IP) code: IP67
Housing material: Metal
Product colour: White

Power
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 10.7 W
Power source type: DC, PoE
Power consumption (max): 9.7 W

Security
Video motion detection: Yes
Mirror: Yes
Password protection: Yes
IP address filtering: Yes
Digest authentication: Yes
Human and vehicle targets classification: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C

Management features
Reset button: Yes

Weight & dimensions
Depth: 74 mm
Width: 184 mm
Weight: 525 g
Height: 74 mm

Network
Live view: Yes
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Bluetooth: No
Certification: CE, NTRA, VCCI, KC, BSMI, FCC, IC

Performance
Day/night mode: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Type: IP security camera
Connectivity technology: Wired
Built-in light: Yes
Wide Dynamic Range (WDR): Yes

Packaging content
Number of cameras: 1

Audio
Built-in speaker(s): Yes
Built-in microphone: Yes
Audio system: 2-way
Signal-to-Noise Ratio (SNR): 52 dB

Storage
Maximum memory card size: 512 GB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Camera
Lens viewing angle, vertical: 29°
Lens viewing angle, diagonal: 60.8°
Lens viewing angle, horizontal: 52.7°
Tilt angle range: 0 - 90°
Angle of rotation: 360°
Pan range: 0 - 360°
Camera shutter speed: 1/3 to 1/10000 s
Minimum illumination: 0.005 lx
Number of Privacy masking areas: 4

Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes

Video
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Video compression formats: H.265, H.265+, H.264, H.264+
Smart IR: Yes
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 1280 x 720 (HD 720), 2304 x 1296, 2560 x 1440, 2048 x 1280, 1920 x 1080 (HD 1080)
Maximum resolution: 2688 x 1520 pixels
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Noise reduction: Yes
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR/White
Number of illumination LEDs: 2
Night vision distance: 30 m

Lens system
Fixed focal length: 6 mm
Number of lenses: 1
Recognize distance: 24 m
Maximum aperture number: 1.6
Identify distance: 12 m
Observe distance: 50 m
Detect distance: 120 m

Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
